Geo Truck
>>
1995
>>
Tracker 4x2 L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

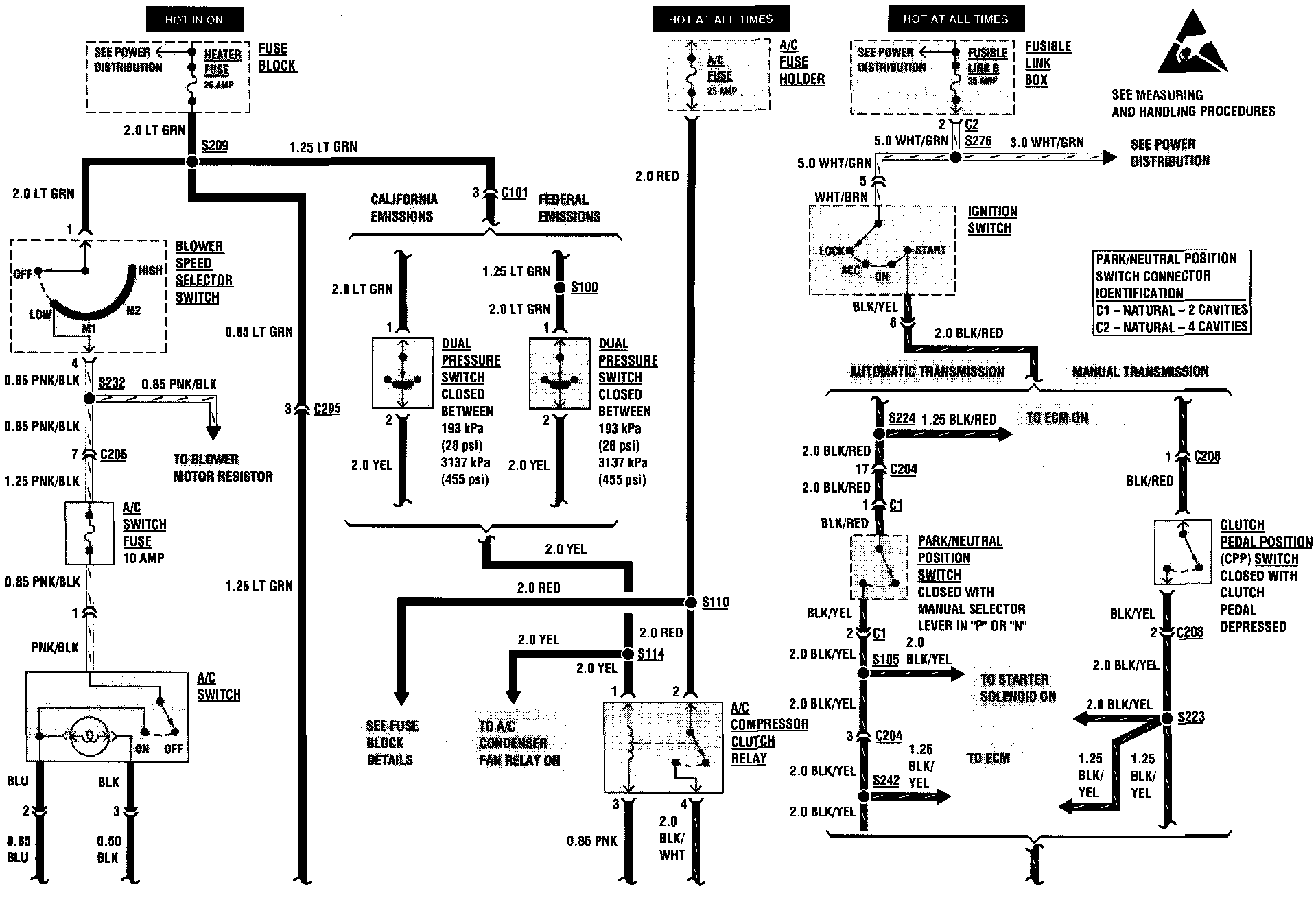

HVAC: Compressor Controls:

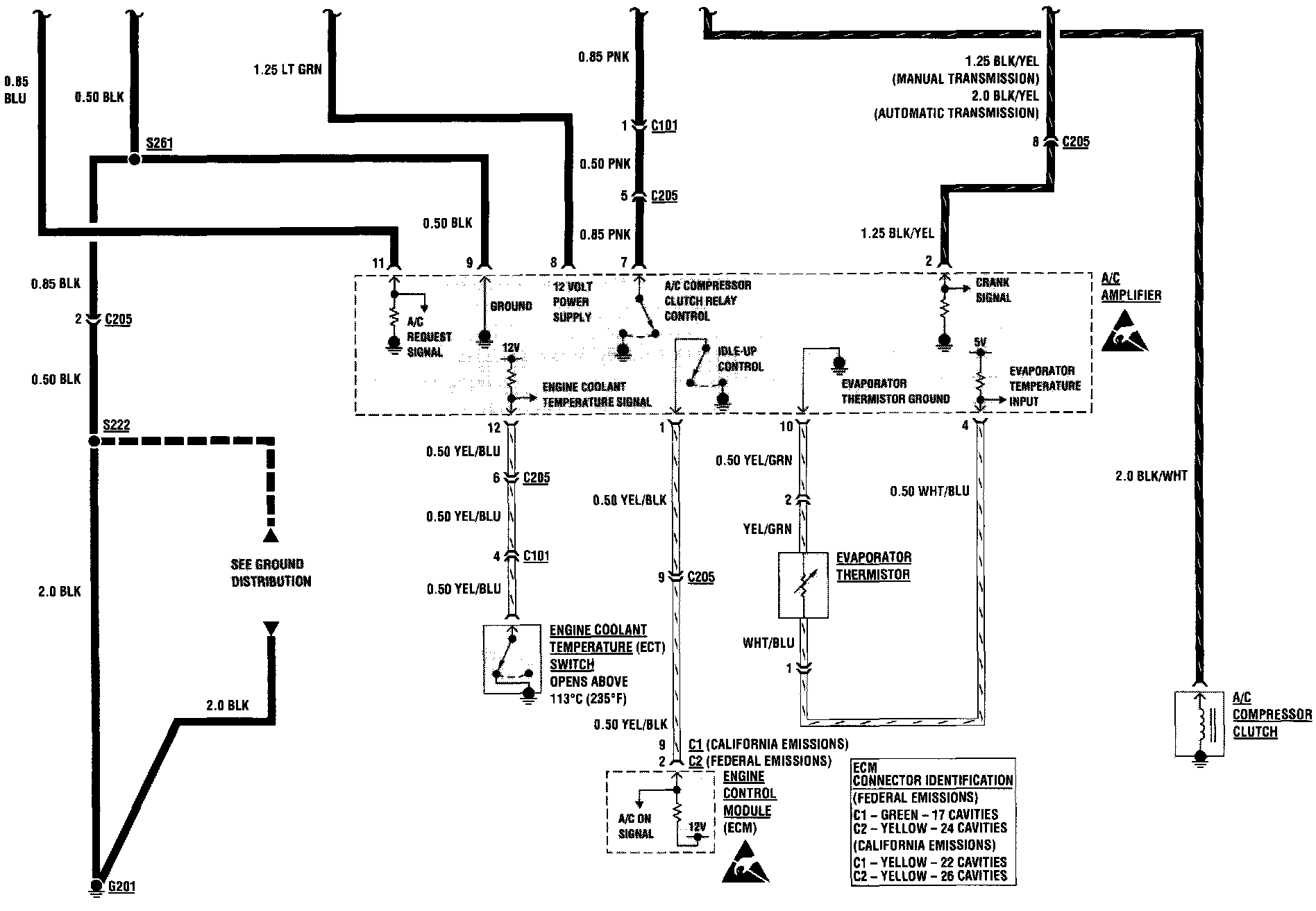

HVAC: Compressor Controls, Cont.:
