Home >> Geo Truck >> 1990 >> Tracker L4-1590cc 1.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> RH-LH Headlamp/Tail-Dome

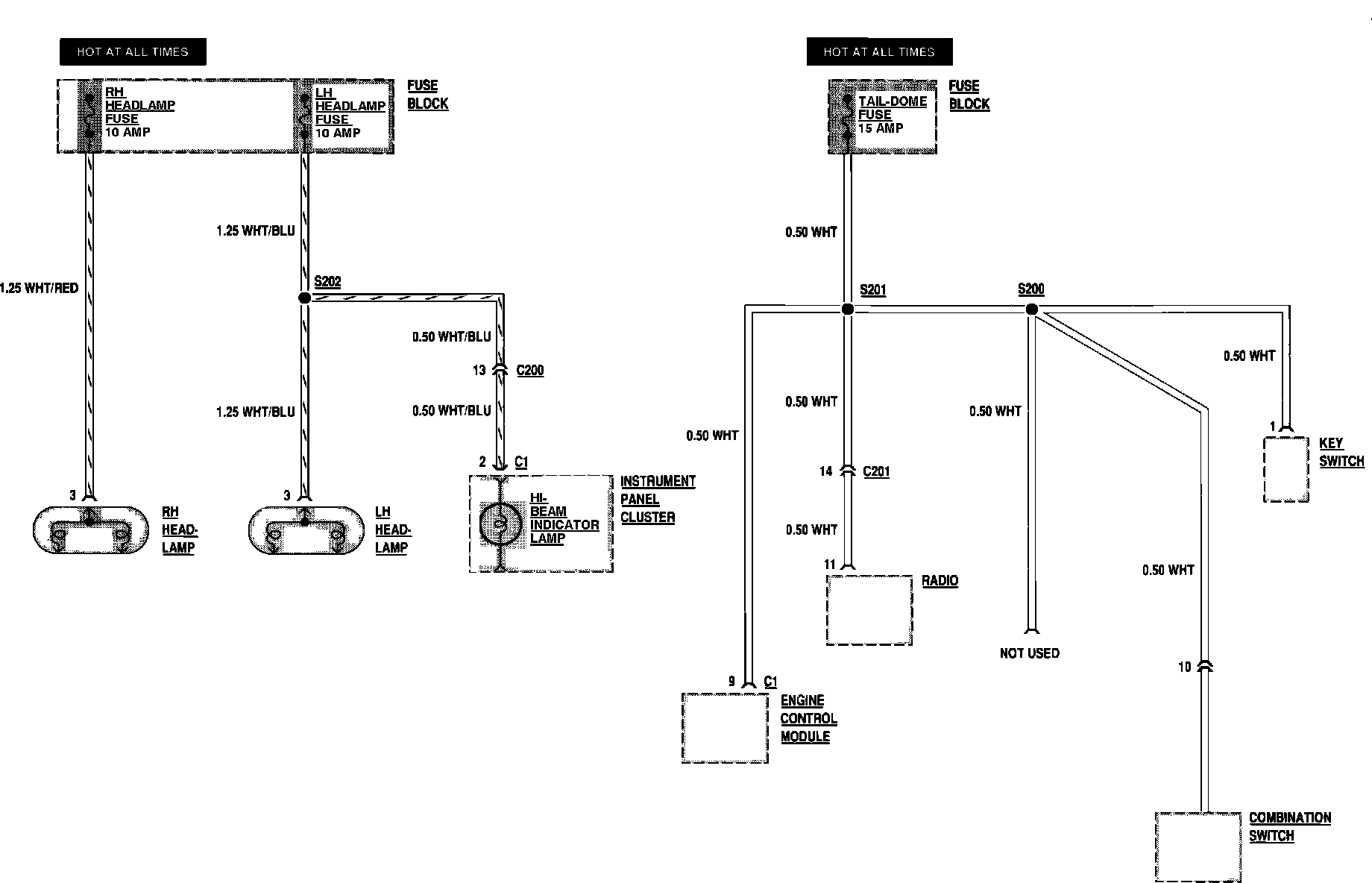

RH-LH Headlamp/Tail-Dome

Fuse Block Details: RH-LH Headlamp/Tail-Dome:
