Floor Air Outlet Replacement - Center

Floor Air Outlet Replacement - Center

Removal Procedure





1. Remove the front floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.

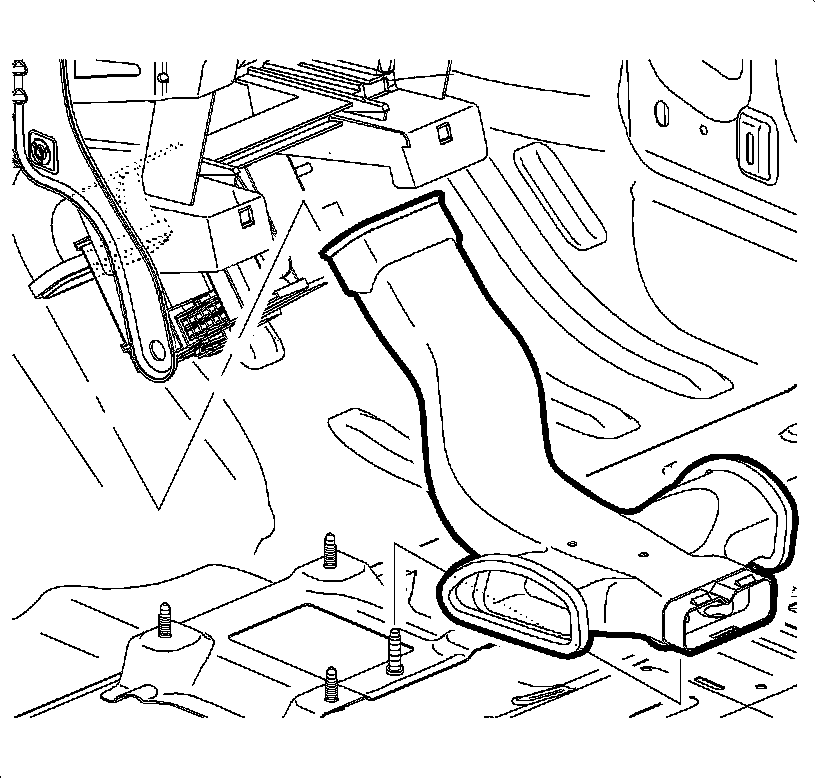

2. Slide the center floor air outlet duct forward enough to clear the rear floor air outlet duct, and then up, and rearward to remove.

Installation Procedure





1. Slide the center floor air outlet duct forward enough to clear rear floor air duct, and then down, and rearward to install.

2. Install the front floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.
