6T30/6T40/6T45/6T50 - Automatic Transmission
>>

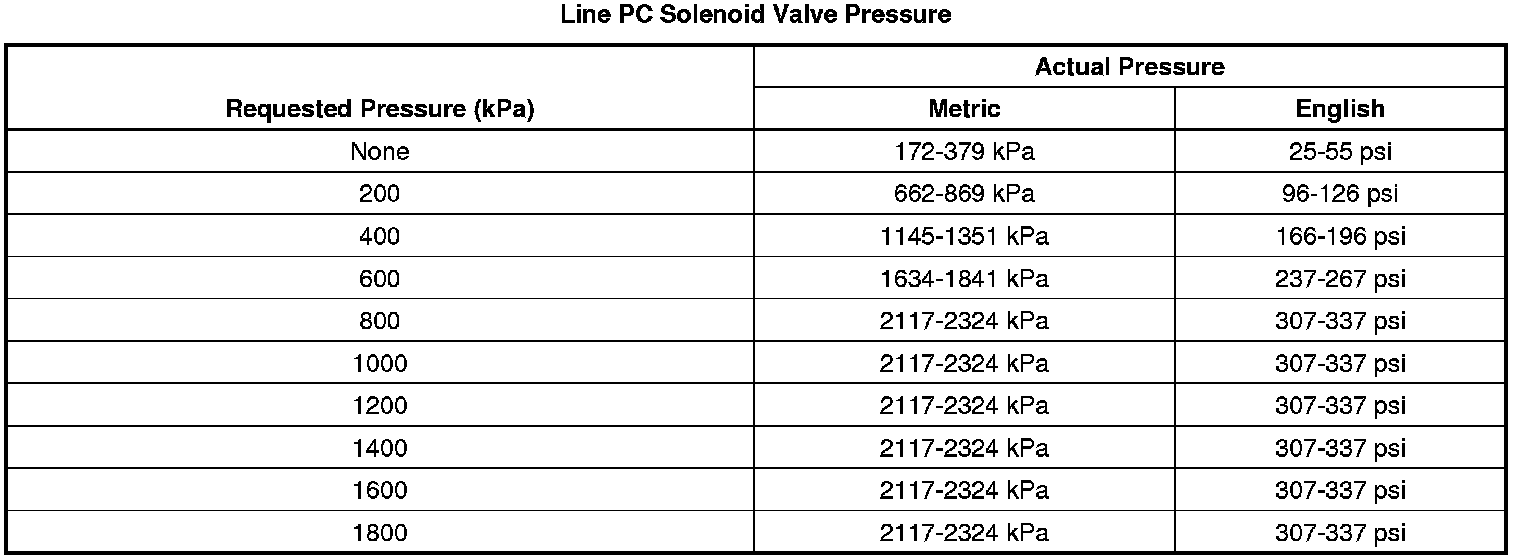

Solenoid Valve Pressure (Gen 2)
Solenoid Valve Pressure (Gen 2)
Solenoid Valve Pressure (Gen 2)
