GMC Truck
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

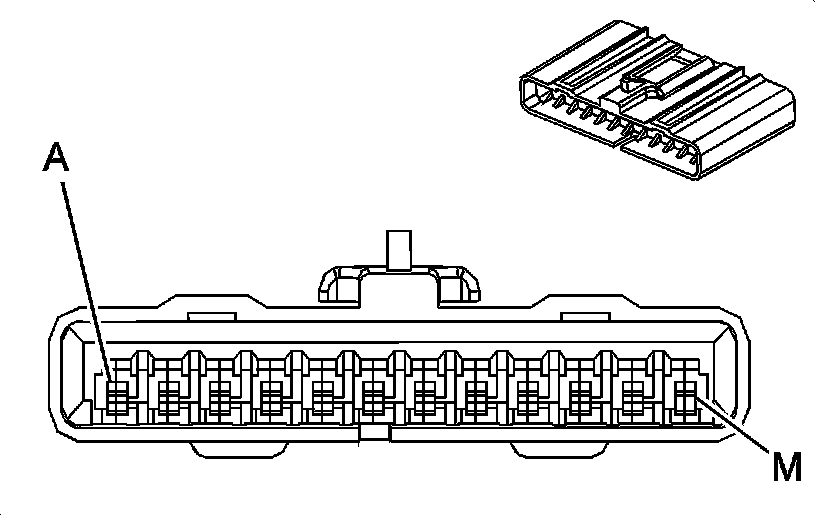

Splice Pack Connector End Views
>>
JX202
JX202
Splice Pack Connector End Views
JX202
