Home
>>
GMC Truck
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Splice Pack Connector End Views
>>

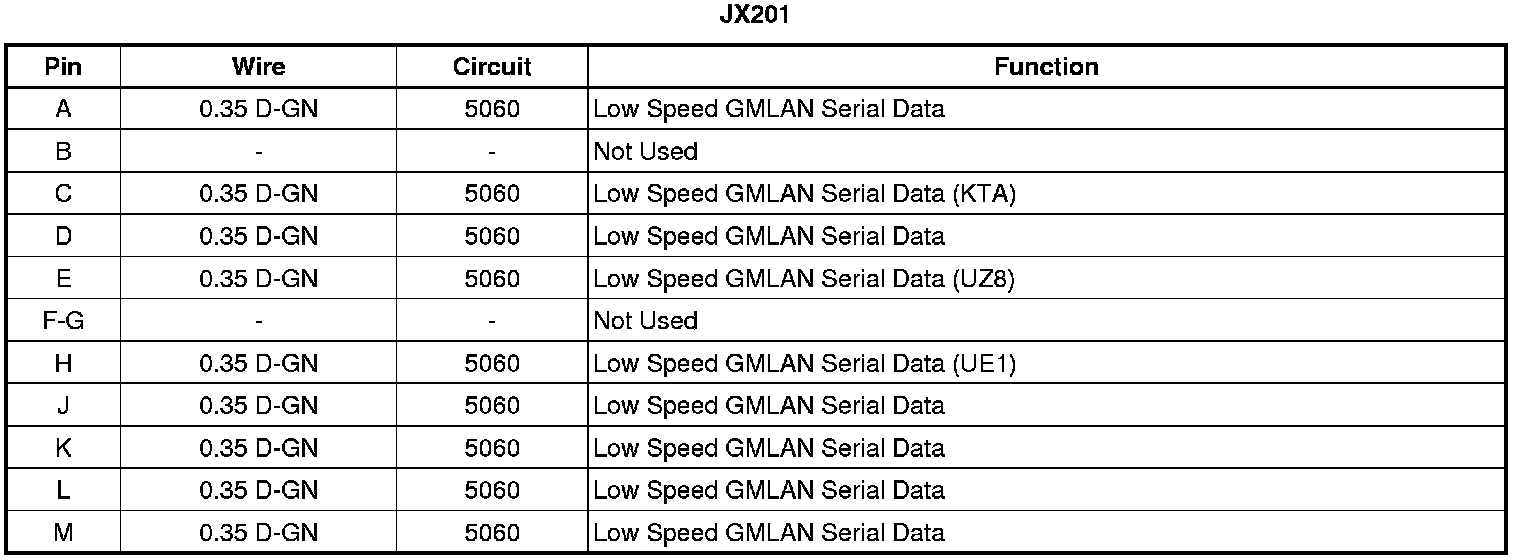

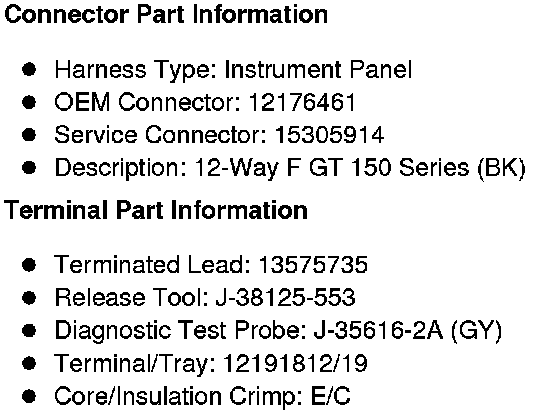

JX201
JX201
Splice Pack Connector End Views
JX201
