GMC Truck
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Window Motor - Passenger
Window Motor - Passenger

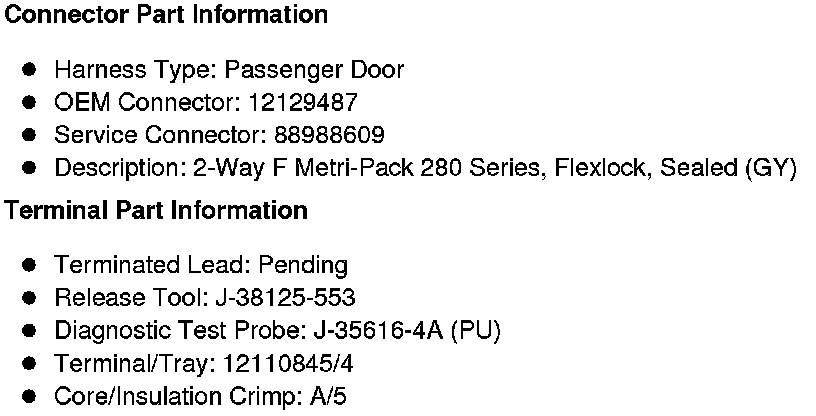

Component Connector End Views

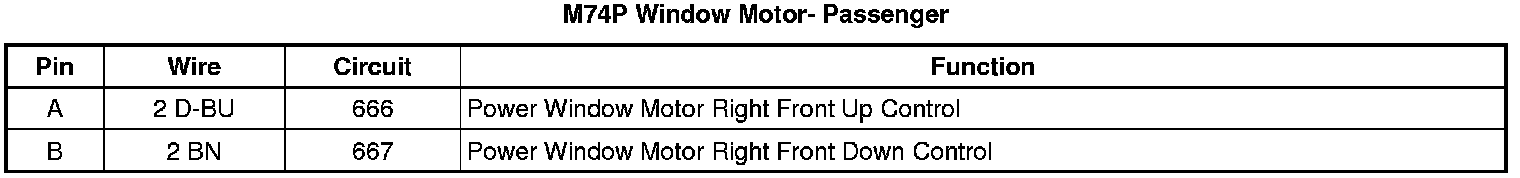

M74P Window Motor- Passenger
