Auxiliary Audio Input X2 (without MCR)
Auxiliary Audio Input X2 (without MCR)

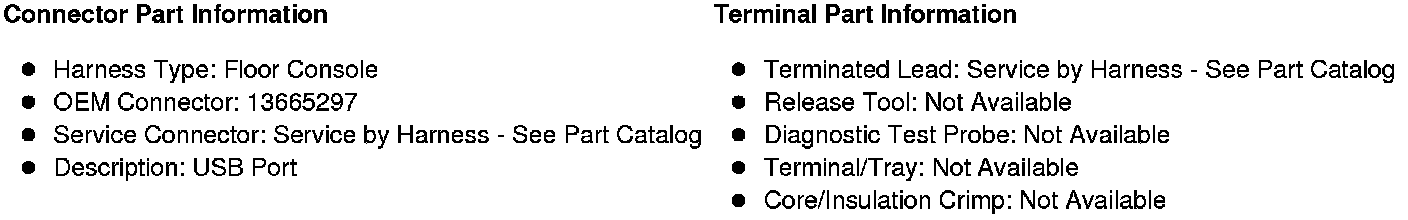

Component Connector End Views

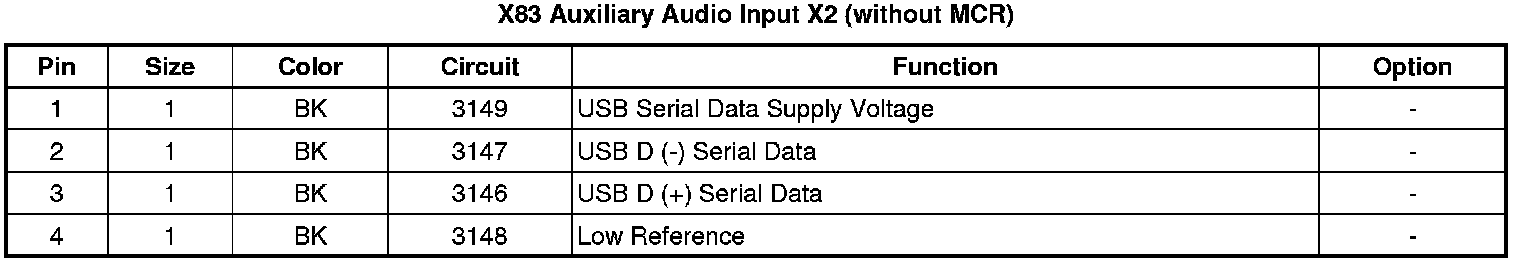

X83 Auxiliary Audio Input X2 (without MCR)
