Speaker - Right Front Door (UZ8)
Speaker - Right Front Door (UZ8)

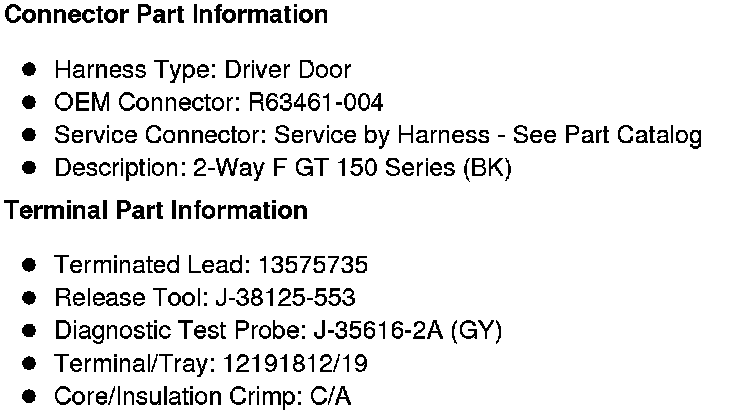

Component Connector End Views

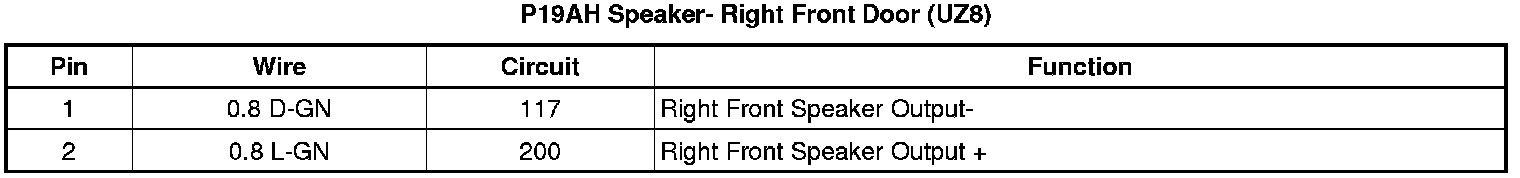

P19AH Speaker- Right Front Door (UZ8)
