Home >> GMC Truck >> 2012 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Radio X4 (UYS or UYX)

Radio X4 (UYS or UYX)

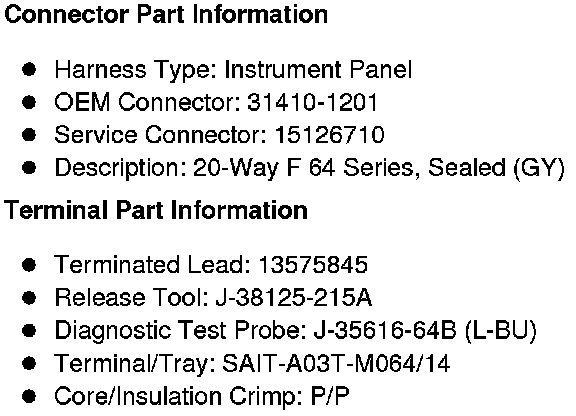

Component Connector End Views

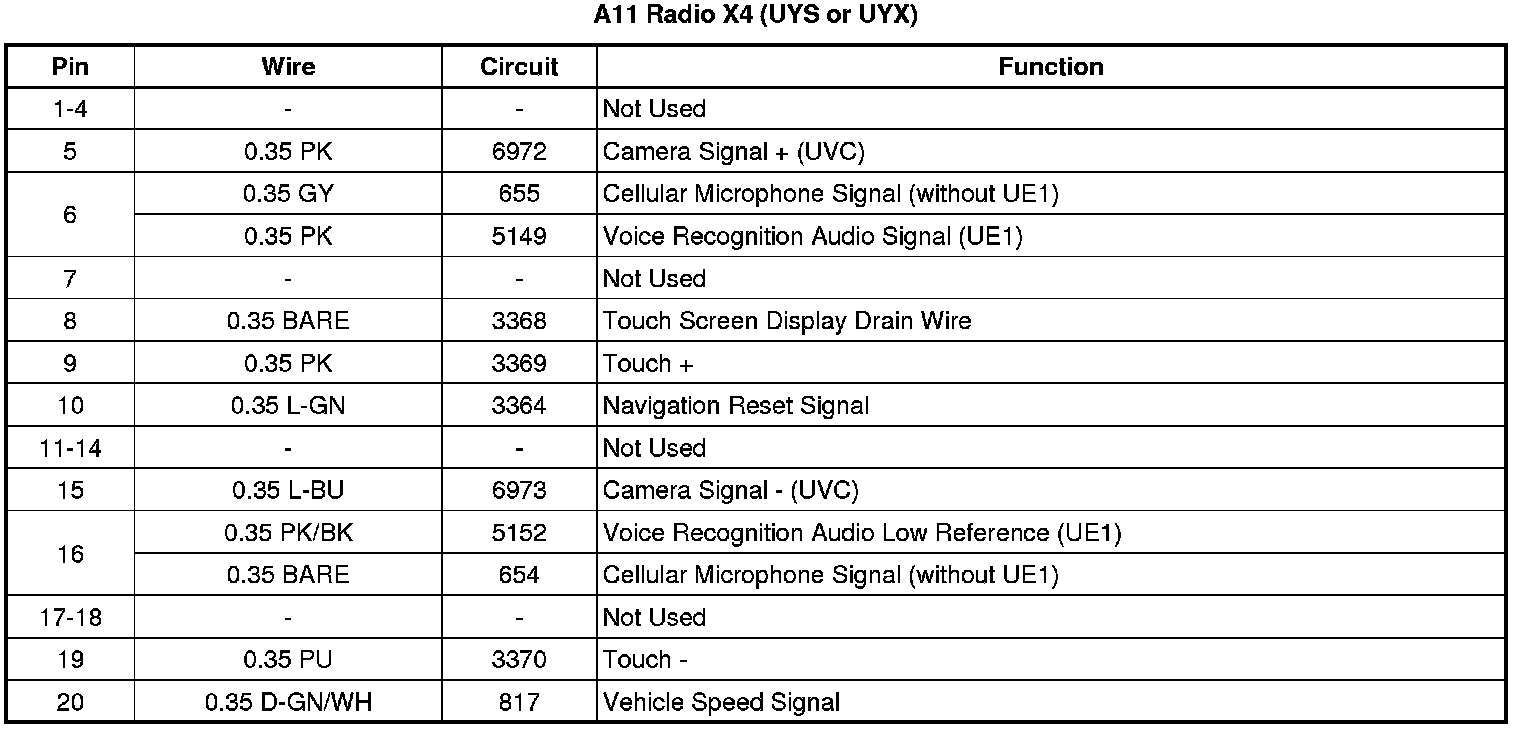

A11 Radio X4 (UYS or UYX)
