GMC Truck
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Radio X3 (UWG)
Radio X3 (UWG)
Component Connector End Views

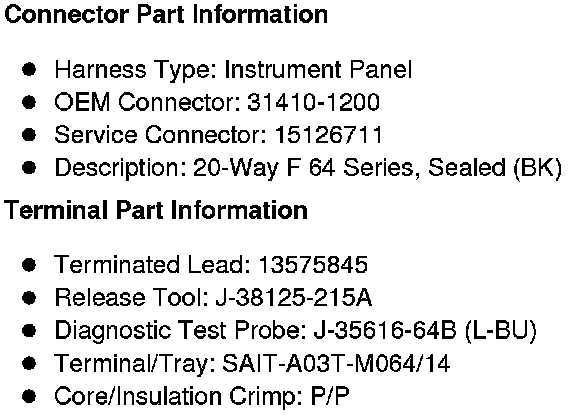

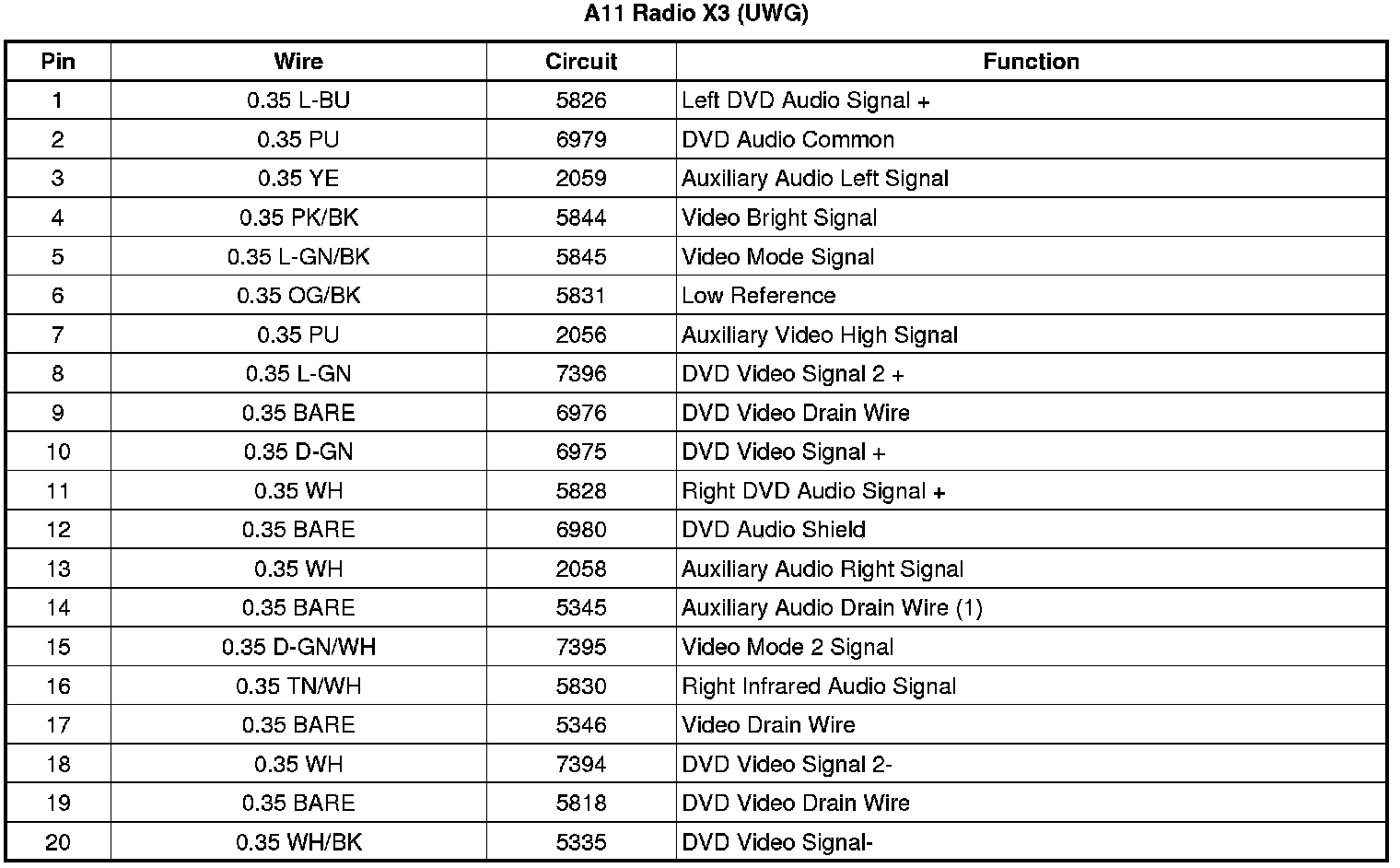

A11 Radio X3 (UWG)
