Home >> GMC Truck >> 2012 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Radio Volume Compensator Interior Noise Microphone - Rear (VQN)

Radio Volume Compensator Interior Noise Microphone - Rear (VQN)

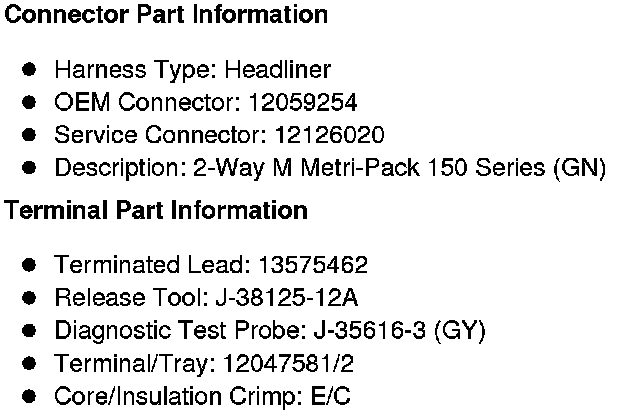

Component Connector End Views

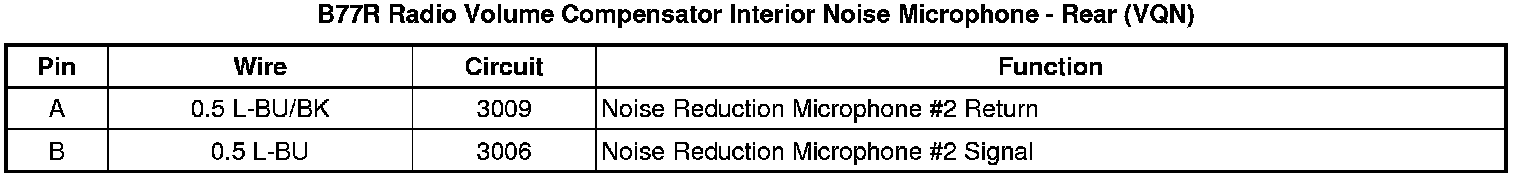

B77R Radio Volume Compensator Interior Noise Microphone - Rear (VQN)
