GMC Truck
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Inside Rearview Mirror (UVC without UYS or UYX)
Inside Rearview Mirror (UVC without UYS or UYX)
Component Connector End Views

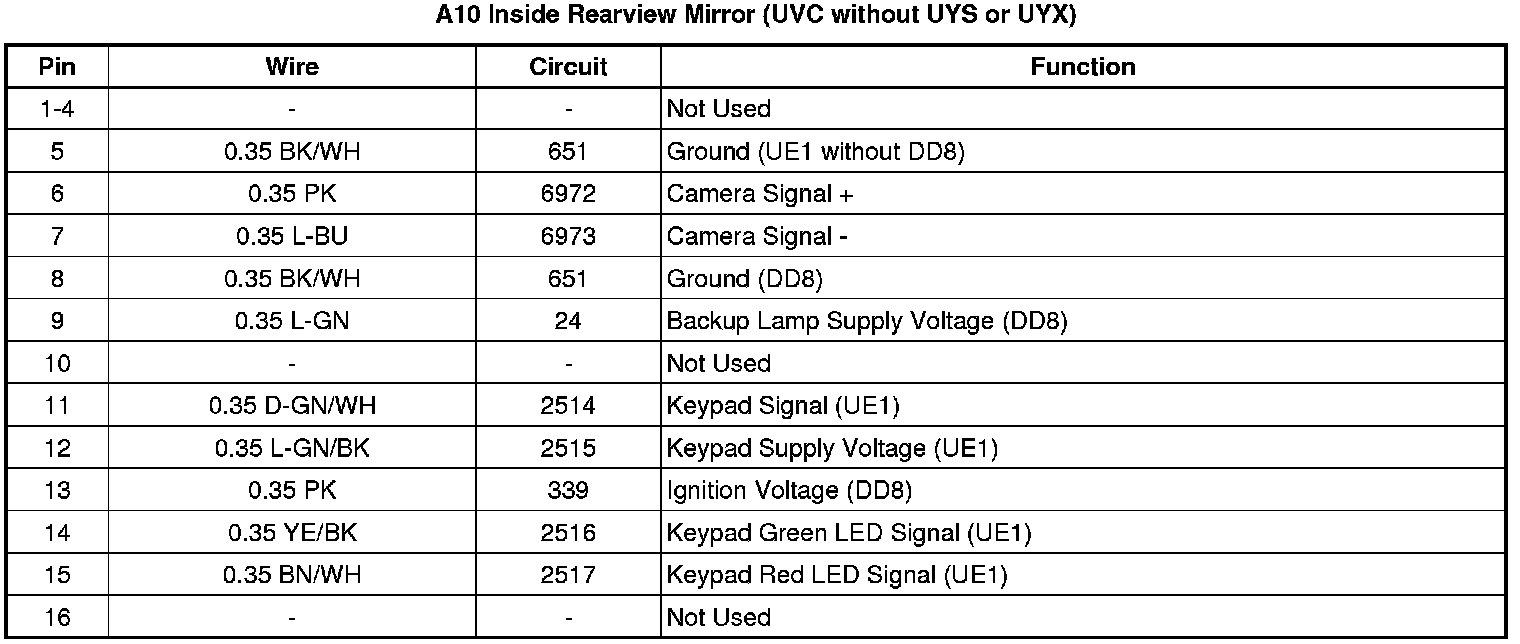

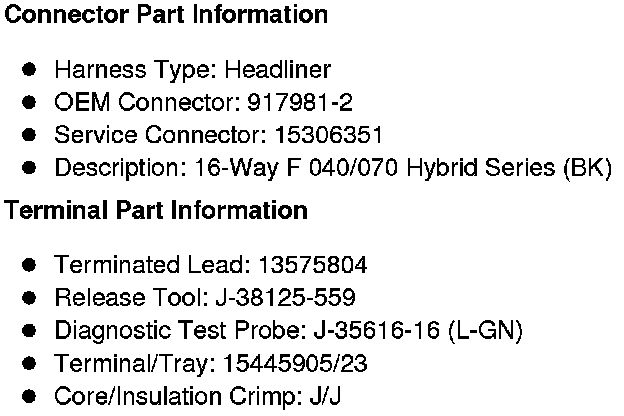

A10 Inside Rearview Mirror (UVC without UYS or UYX)
