Accessory Power Receptacle - Center Console 1
Accessory Power Receptacle - Center Console 1
Component Connector End Views

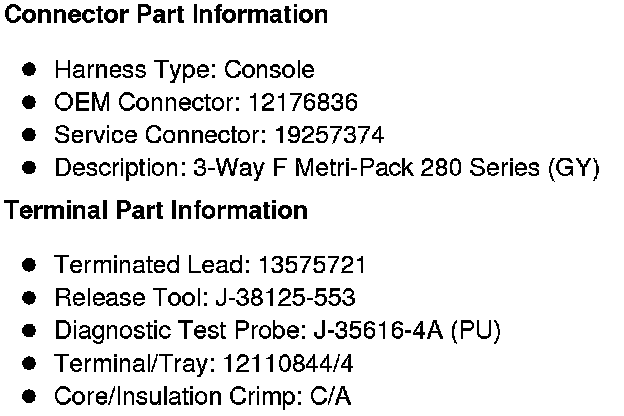

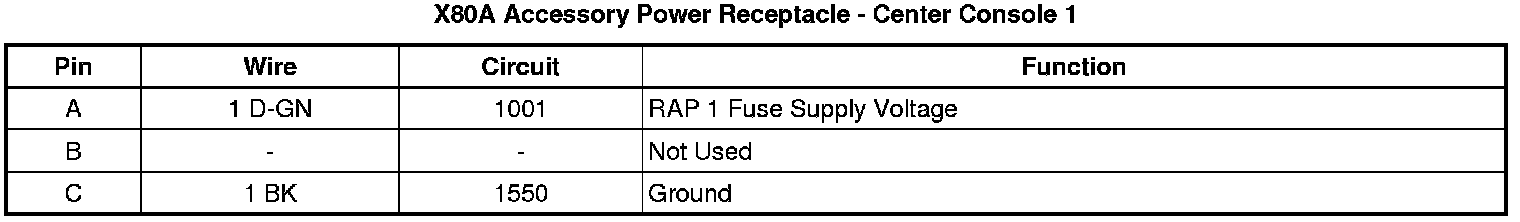

X80A Accessory Power Receptacle - Center Console 1
