Clutch Release Bearing: Service and Repair

Release Bearing Replacement

Removal Procedure




1. Remove the transmission. Refer to Transmission Replacement Transmission Replacement.

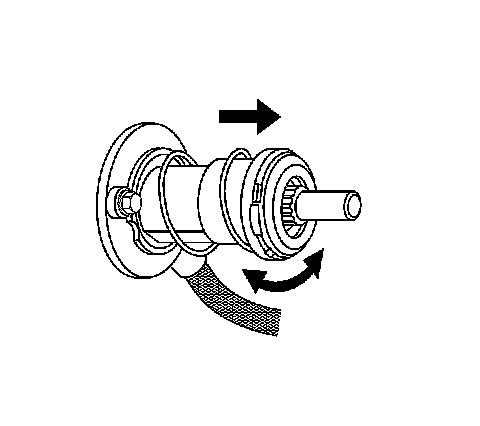

2. Remove the clutch release bearing.

* Rotate the bearing in either direction.
* The compression spring load will push the release bearing off the end of the clutch actuator bearing.

Installation Procedure

Important: DO NOT use cleaners or chemicals to clean the quill and DO NOT grease the quill.





1. Using a clean dry cloth, clean the exposed area of the actuator cylinder quill.

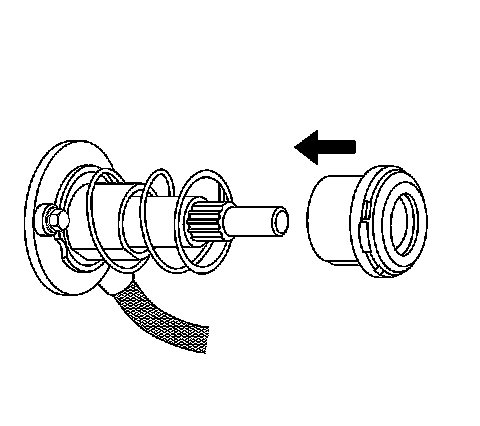

2. Install the NEW clutch release bearing to the clutch actuator cylinder.

* Firmly push the clutch release bearing into place.
* The release bearing will snap over the retainer tab and will be self-retained to the actuator cylinder.

3. Install the transmission. Refer to Transmission Replacement Transmission Replacement.
