GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>

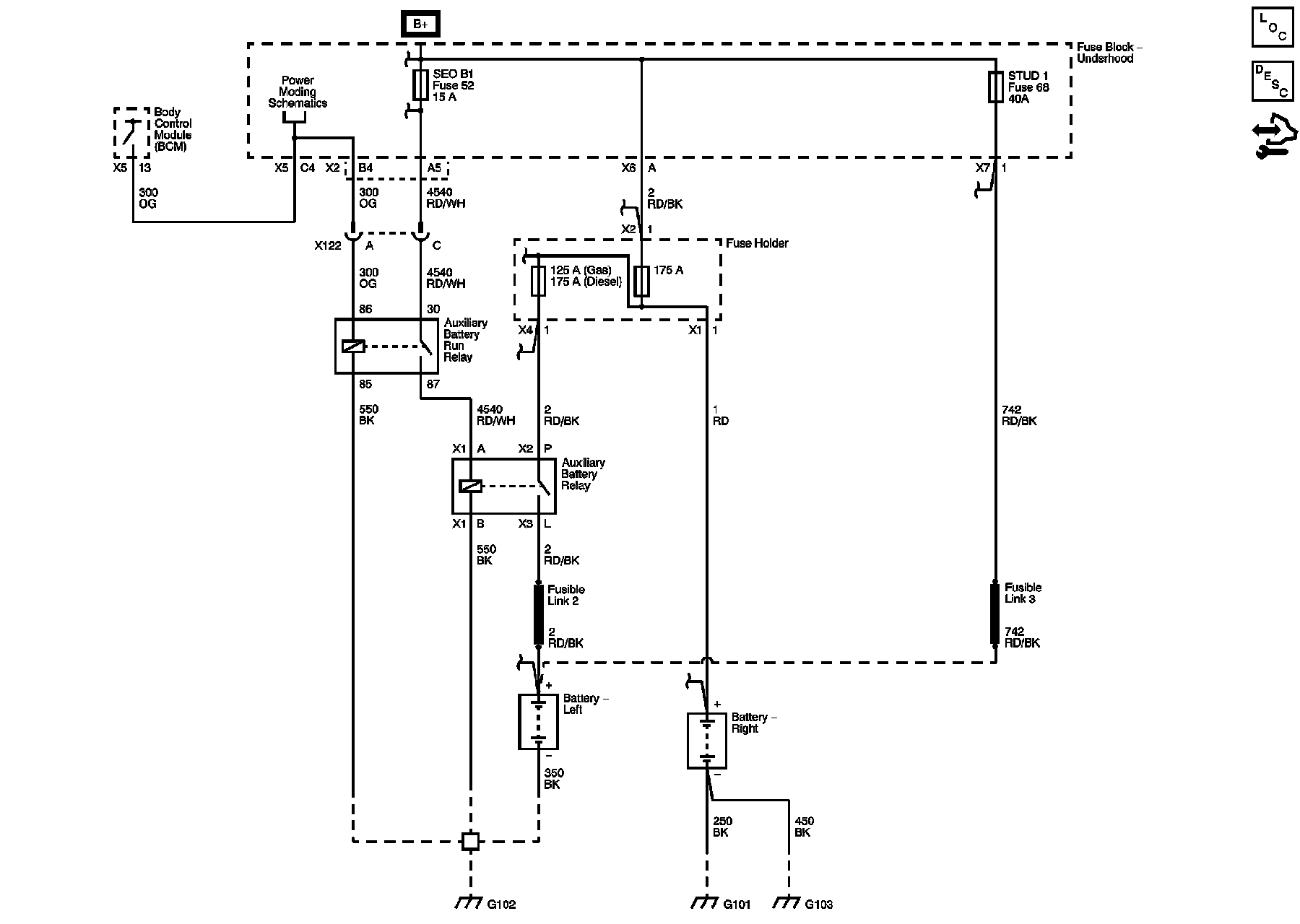

Auxiliary Battery Schematics
Auxiliary Battery Schematics
Auxiliary Battery Schematics
Auxiliary Battery
