GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Relay
>>

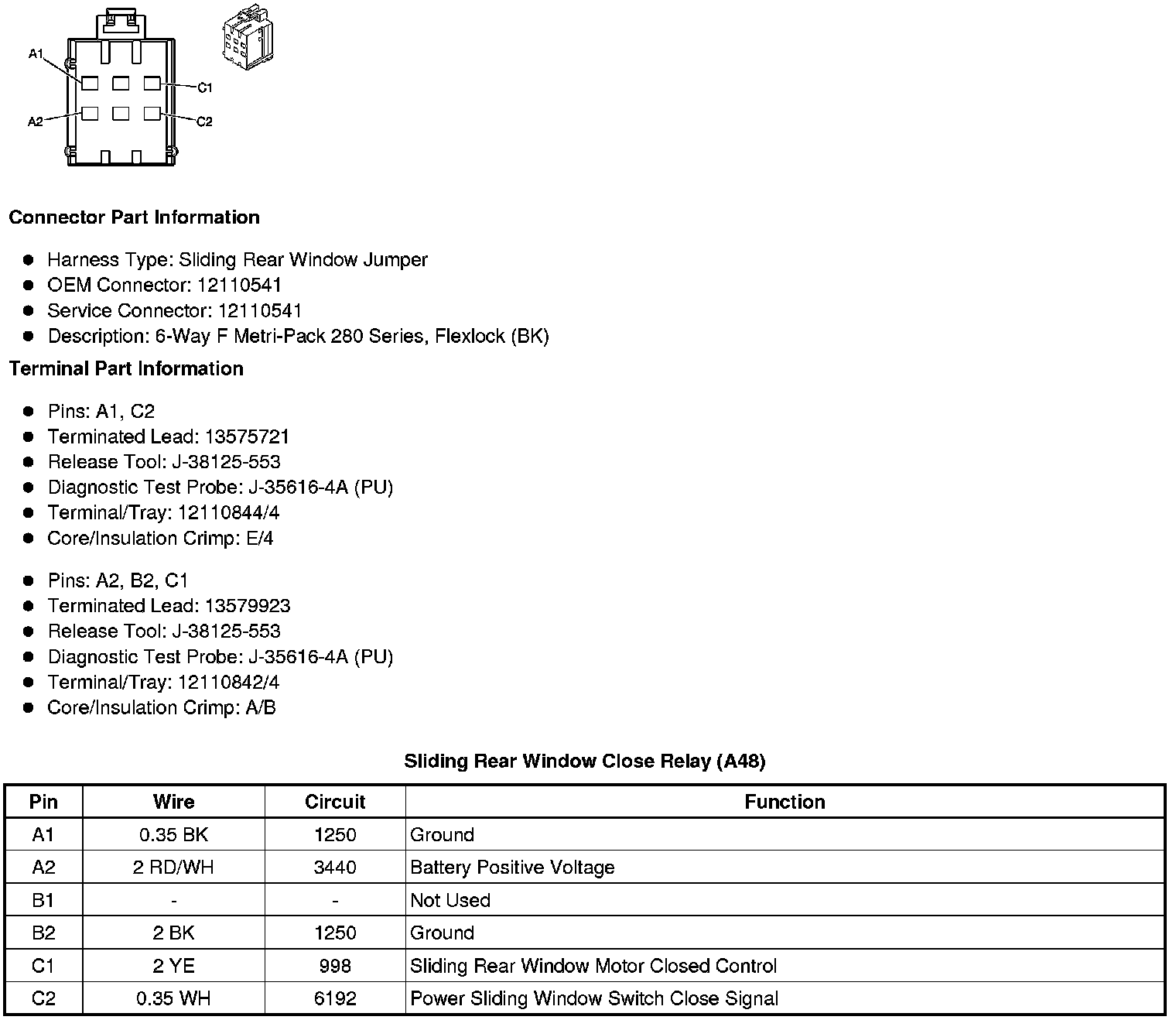

Sliding Rear Window Close Relay (A48)
Sliding Rear Window Close Relay (A48)
Component Connector End Views
Sliding Rear Window Close Relay (A48)
