GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Connector End Views By Name
>>
Inflatable Restraint I/P Module (10 Series except MEX)
Inflatable Restraint I/P Module (10 Series except MEX)
Component Connector End Views

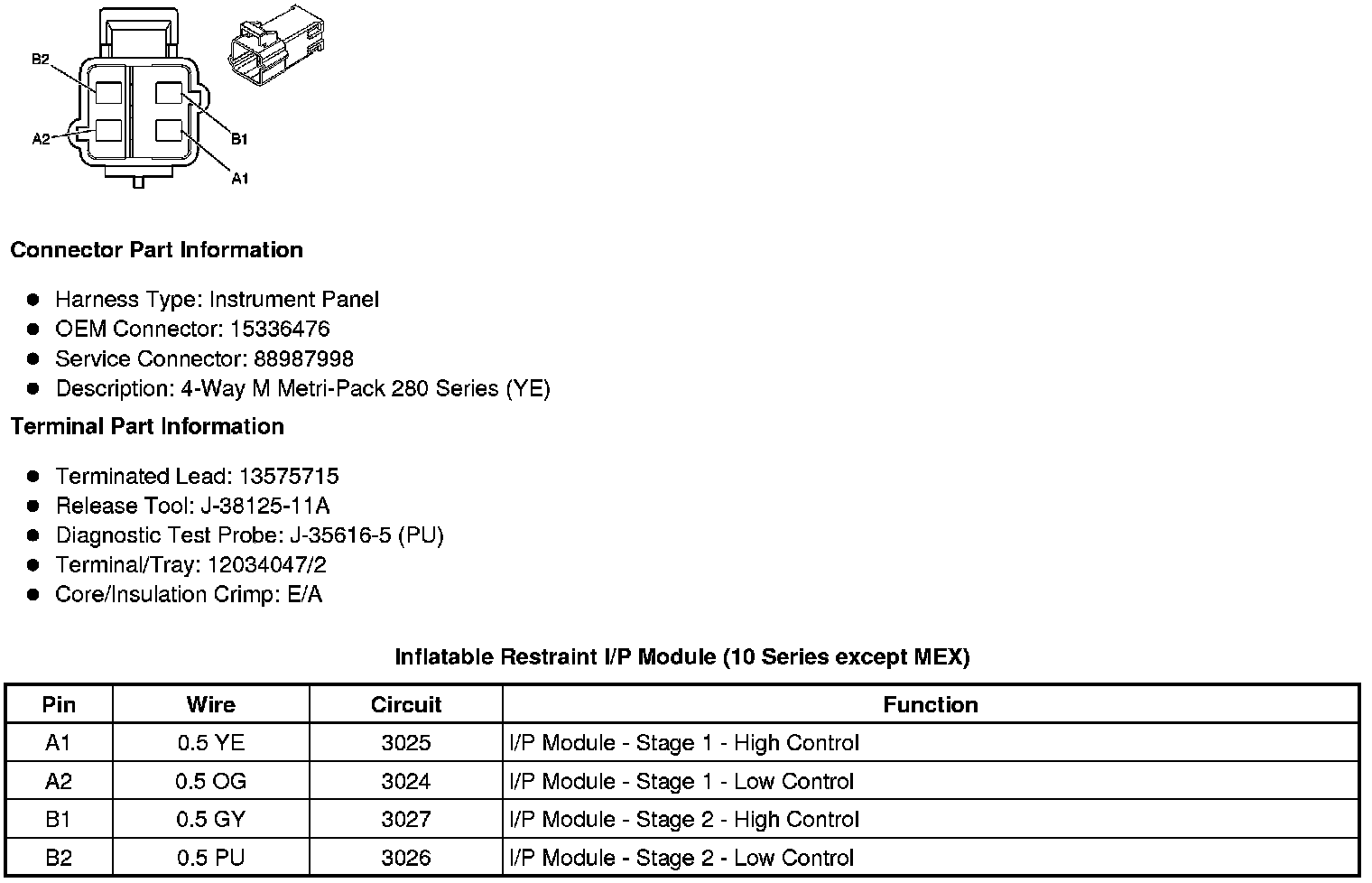

Inflatable Restraint I/P Module (10 Series except MEX)
