Fluid Pressure Sensor/Switch, A/T
>>
Automatic Transmission Fluid Temperature (TFT) Sensor (M30)
Automatic Transmission Fluid Temperature (TFT) Sensor (M30)

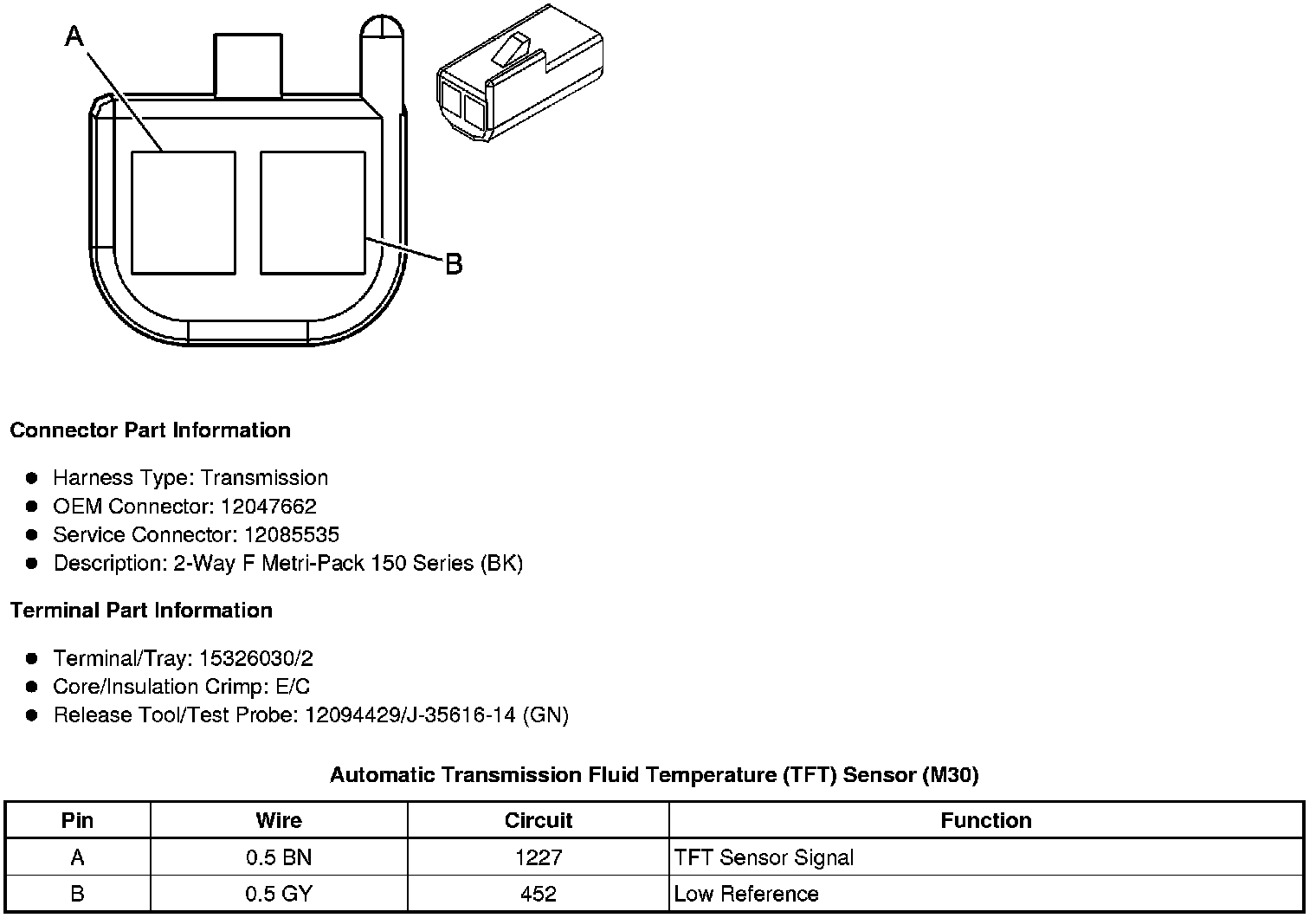

Component Connector End Views
Automatic Transmission Fluid Temperature (TFT) Sensor (M30)
