X100
X100

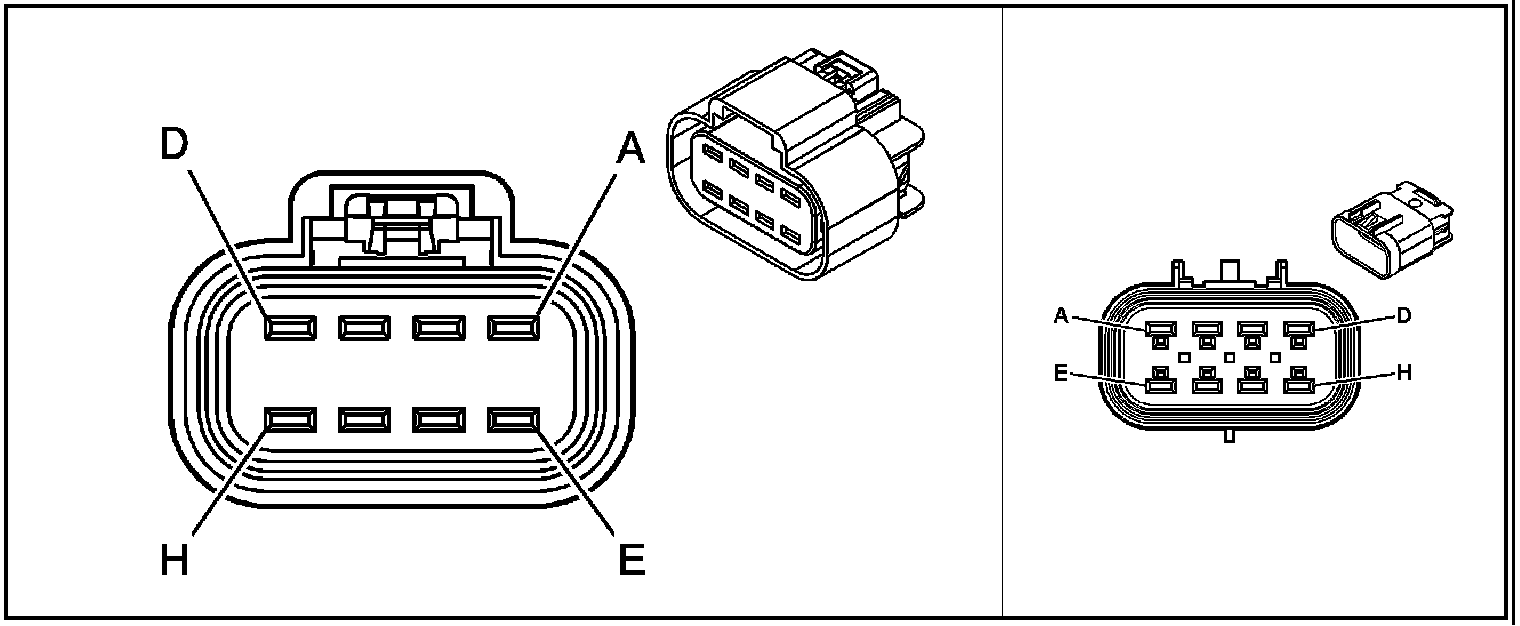

Inline Harness Connector End Views

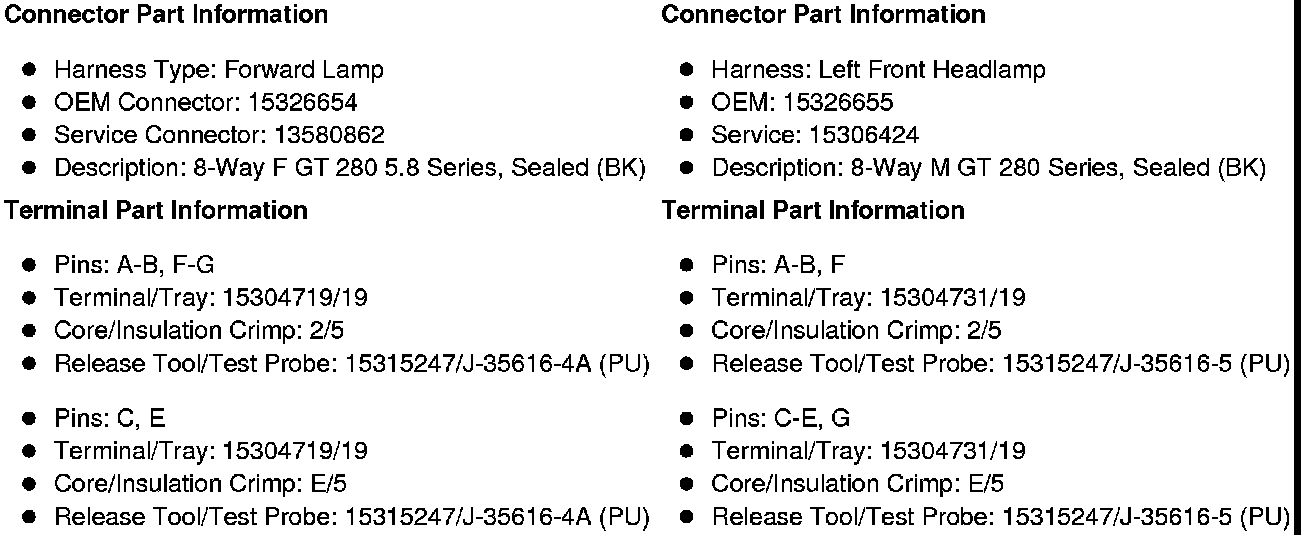

X100 Forward Lamp Harness to Left Front Headlamp Harness
