Transfer Case Encoder Motor (NQF or NQH)
Transfer Case Encoder Motor (NQF or NQH)
Component Connector End Views

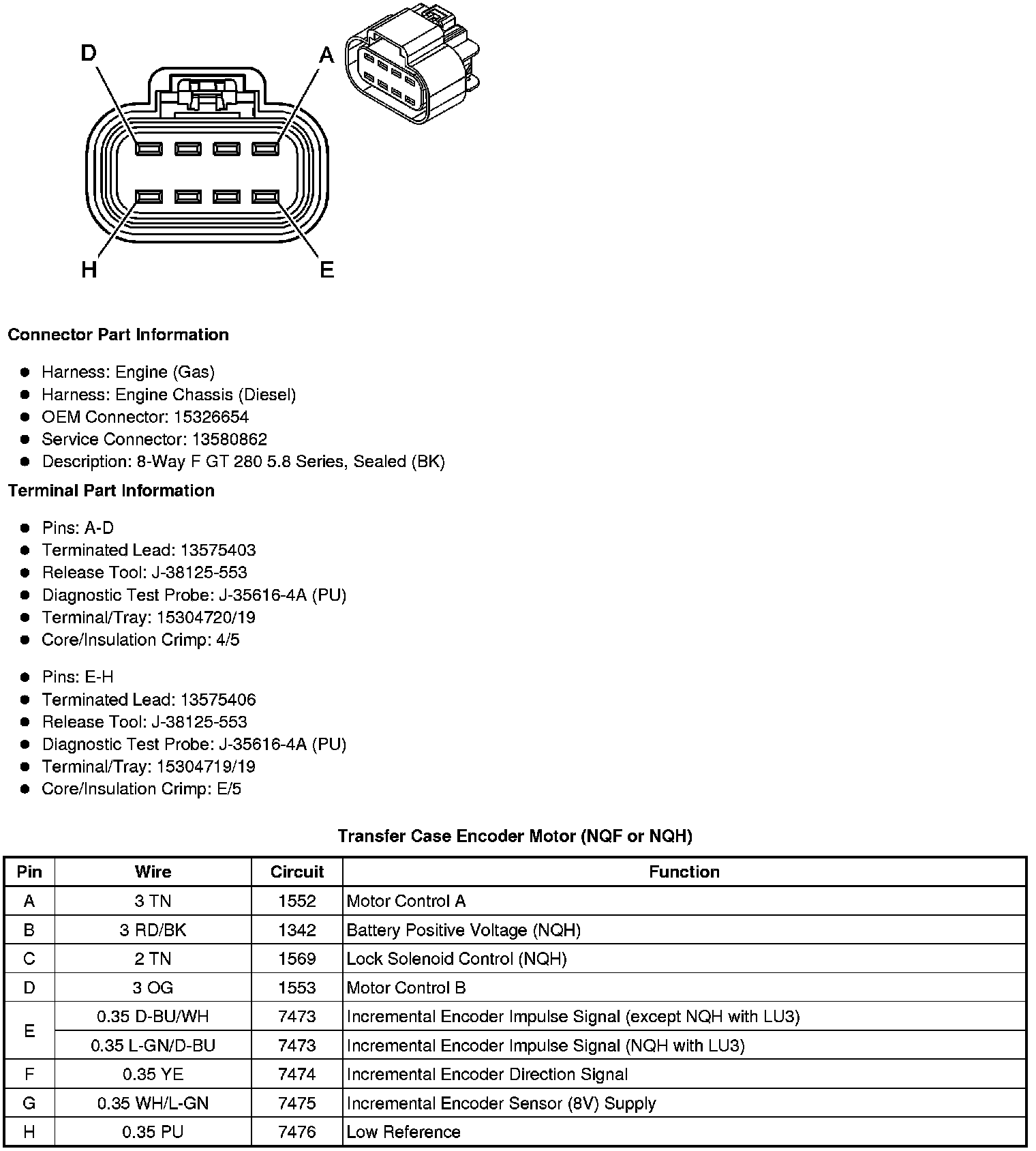

Transfer Case Encoder Motor (NQF or NQH)
