GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Trailer Connector (except MEX or EXP)
Trailer Connector (except MEX or EXP)
Component Connector End Views

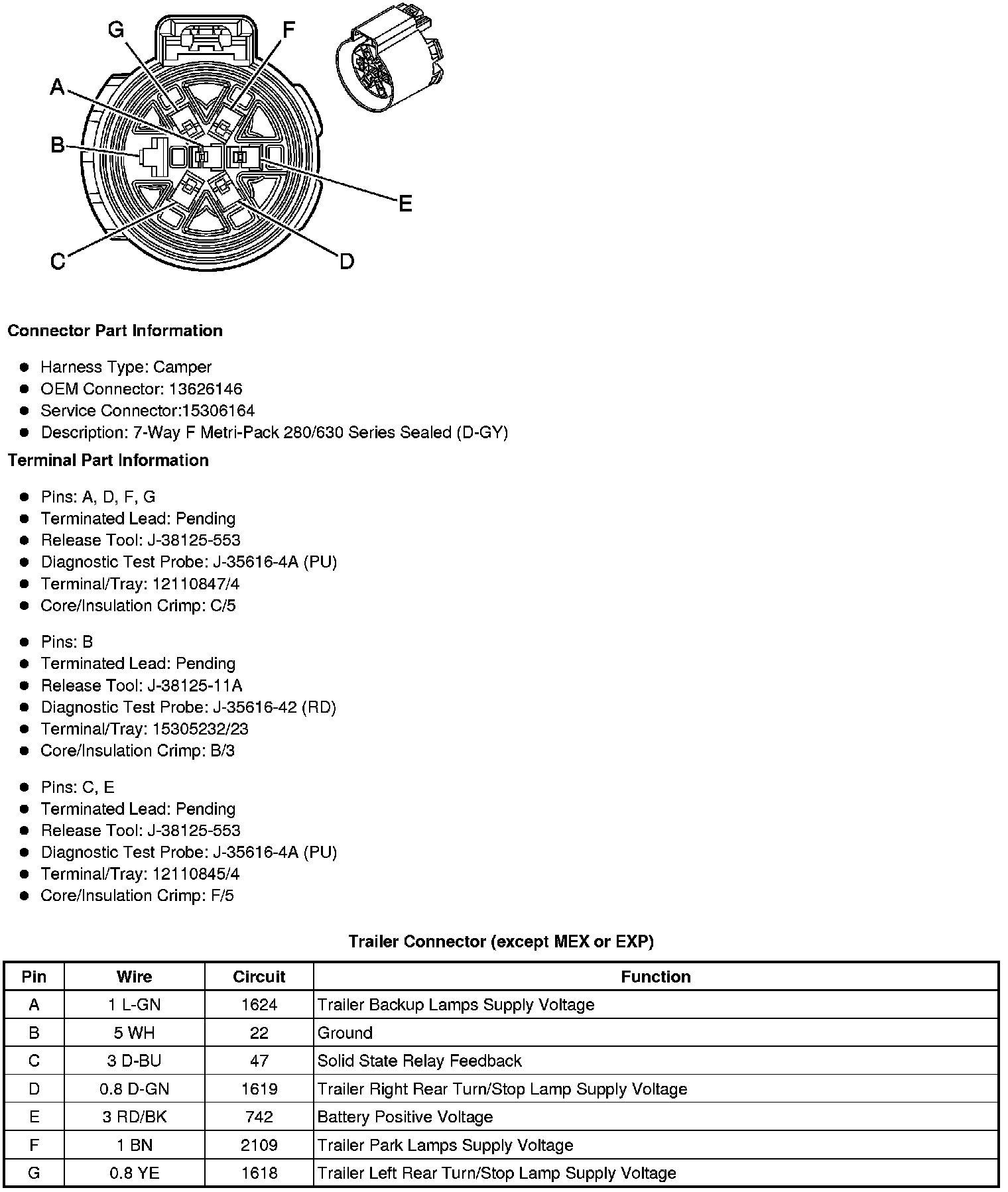

Trailer Connector (except MEX or EXP)
