Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Seat Belt Buckle - Passenger X2 (AL0)
Seat Belt Buckle - Passenger X2 (AL0)
Component Connector End Views

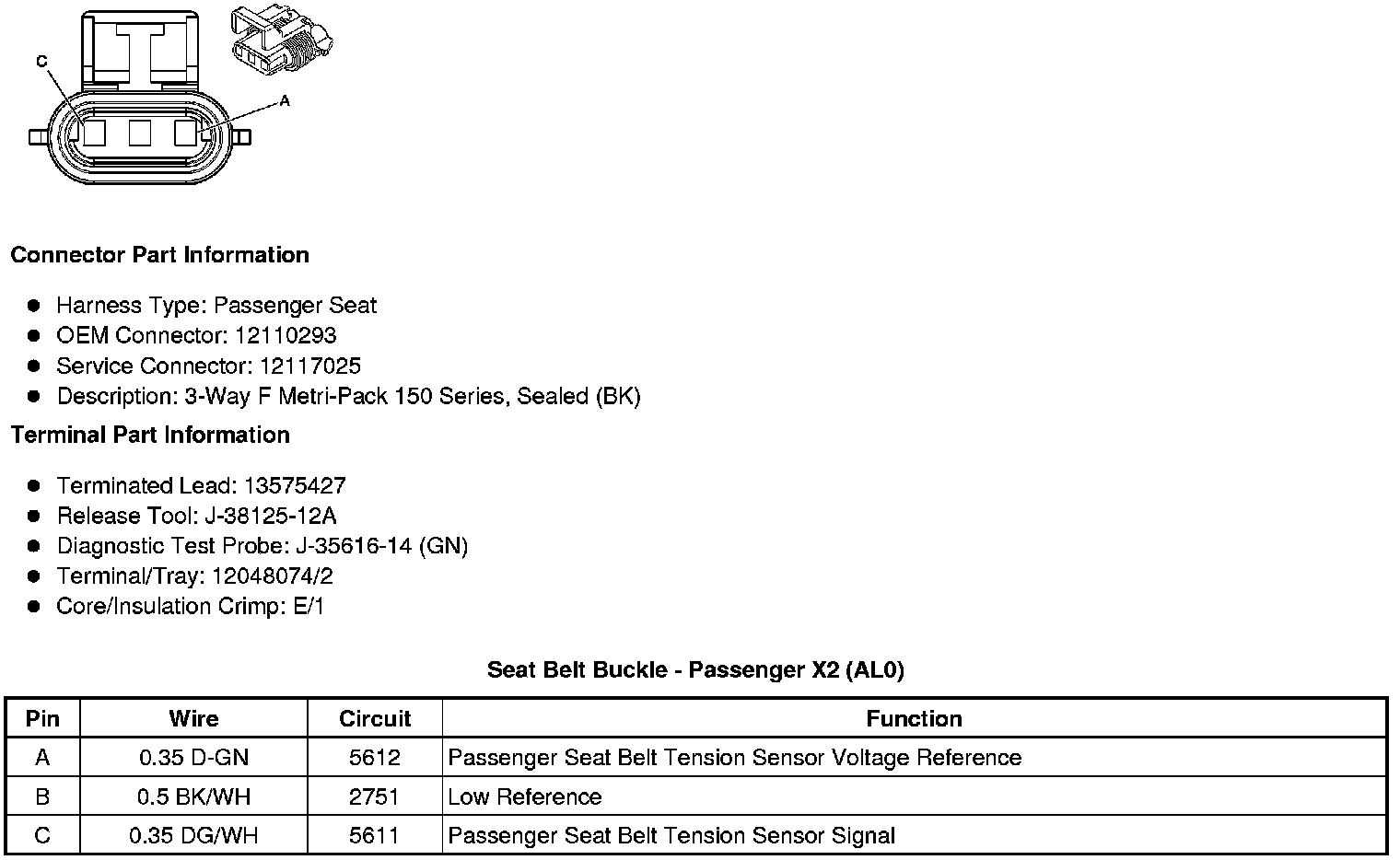

Seat Belt Buckle - Passenger X2 (AL0)
