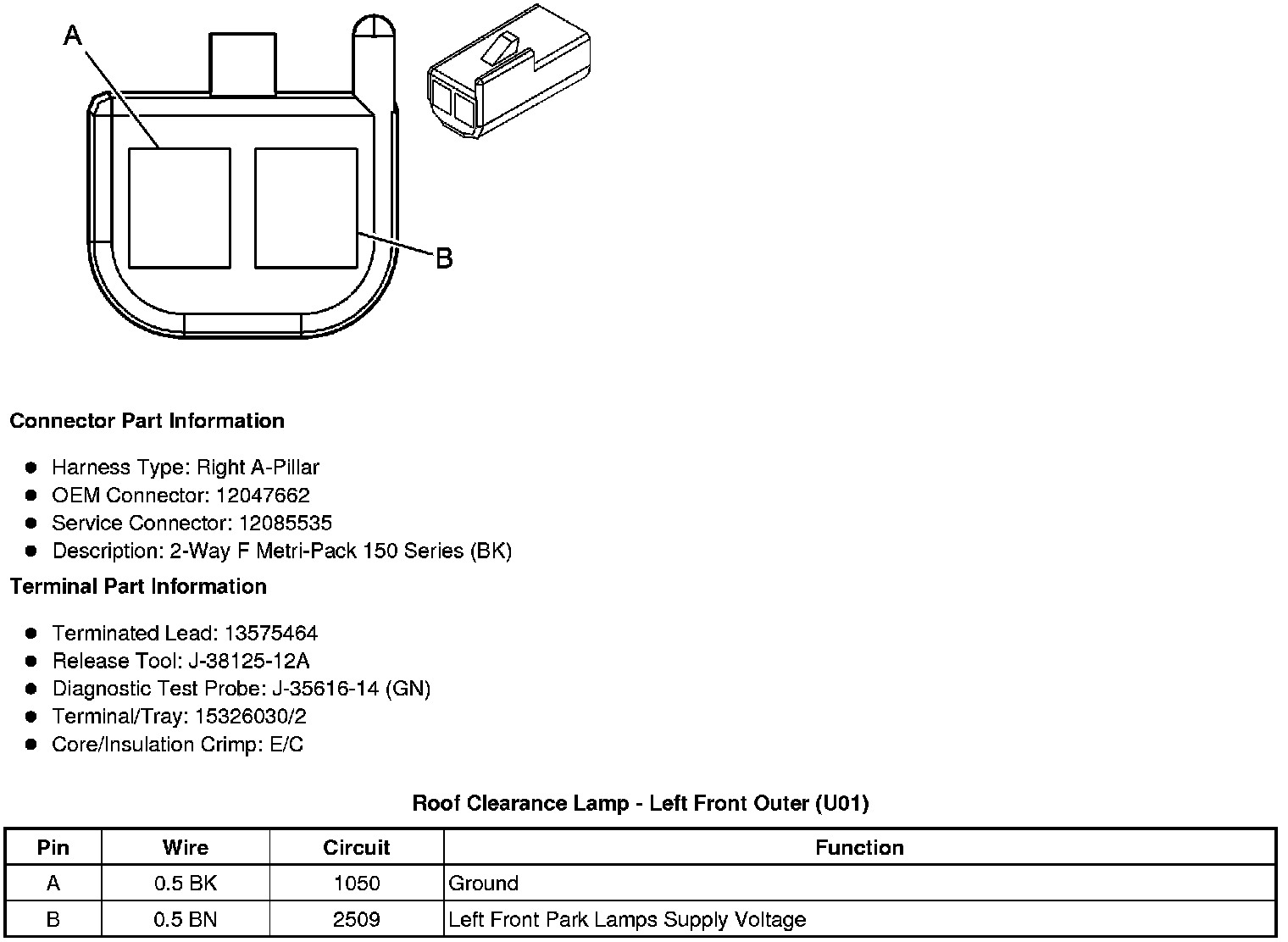

Roof Clearance Lamp - Left Front Outer (U01)
Roof Clearance Lamp - Left Front Outer (U01)
Component Connector End Views
Roof Clearance Lamp - Left Front Outer (U01)
