GMC Truck
>>
2012
>>
Sierra Denali AWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Recirculation Actuator (C67 or CJ2)
Recirculation Actuator (C67 or CJ2)
Component Connector End Views

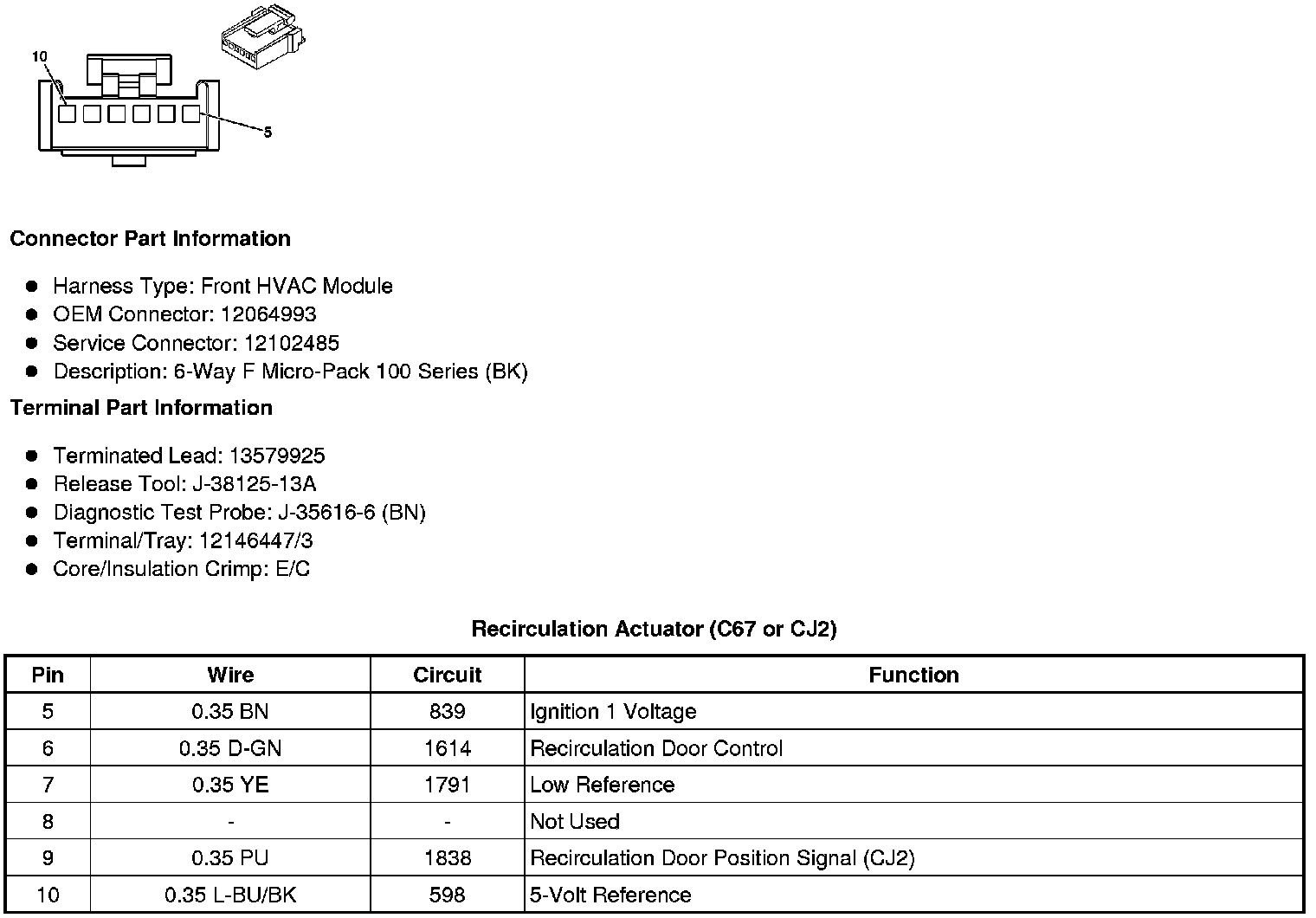

Recirculation Actuator (C67 or CJ2)
