Rear Fender Clearance Lamp - Left Front (RO5)
Rear Fender Clearance Lamp - Left Front (RO5)
Component Connector End Views

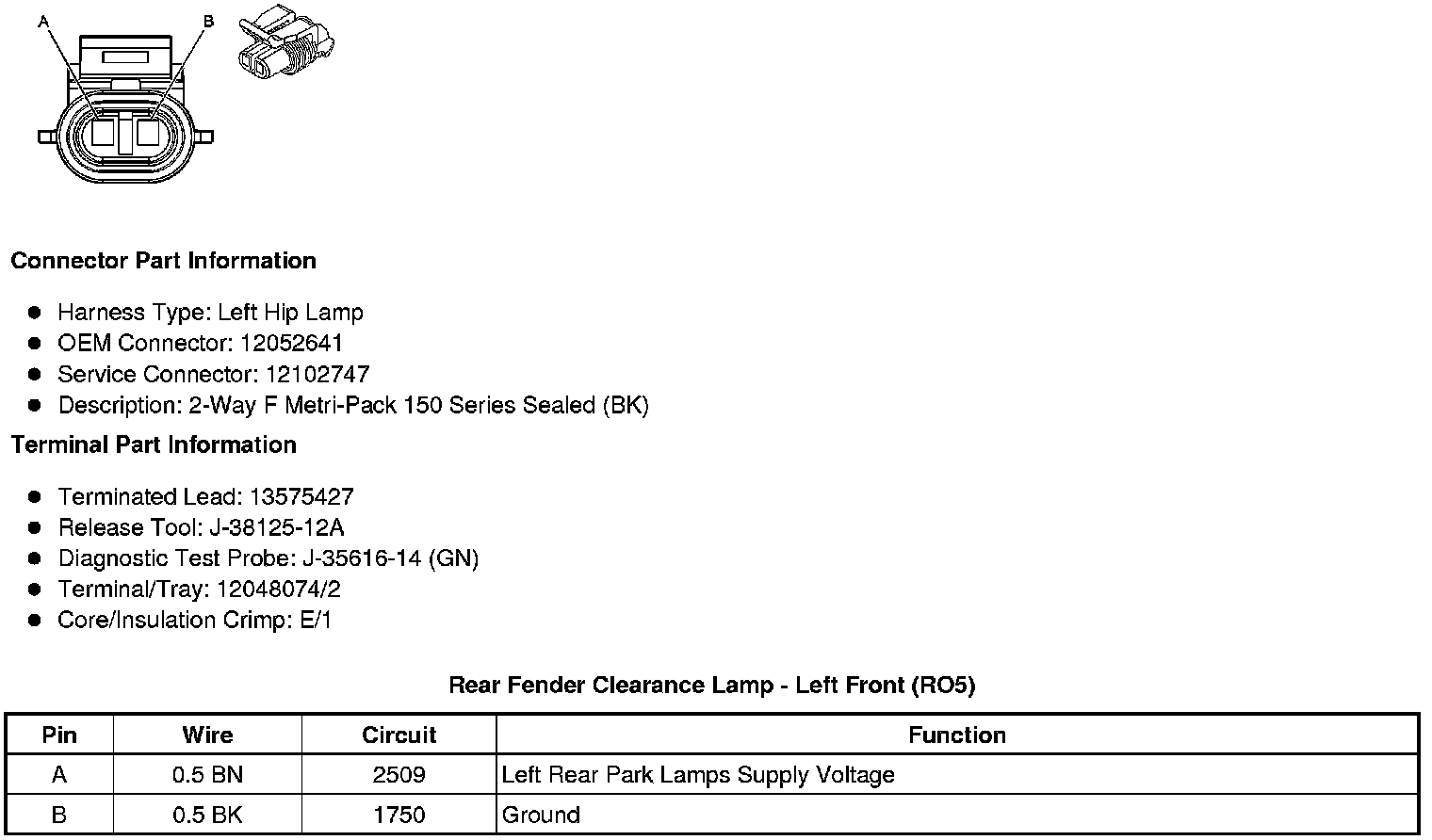

Rear Fender Clearance Lamp - Left Front (RO5)
