Home
>>
GMC Truck
>>
2012
>>
Sierra 1500 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Mode Switch, A/T
>>
Automatic Transmission Internal Mode Switch (MW7)
Automatic Transmission Internal Mode Switch (MW7)

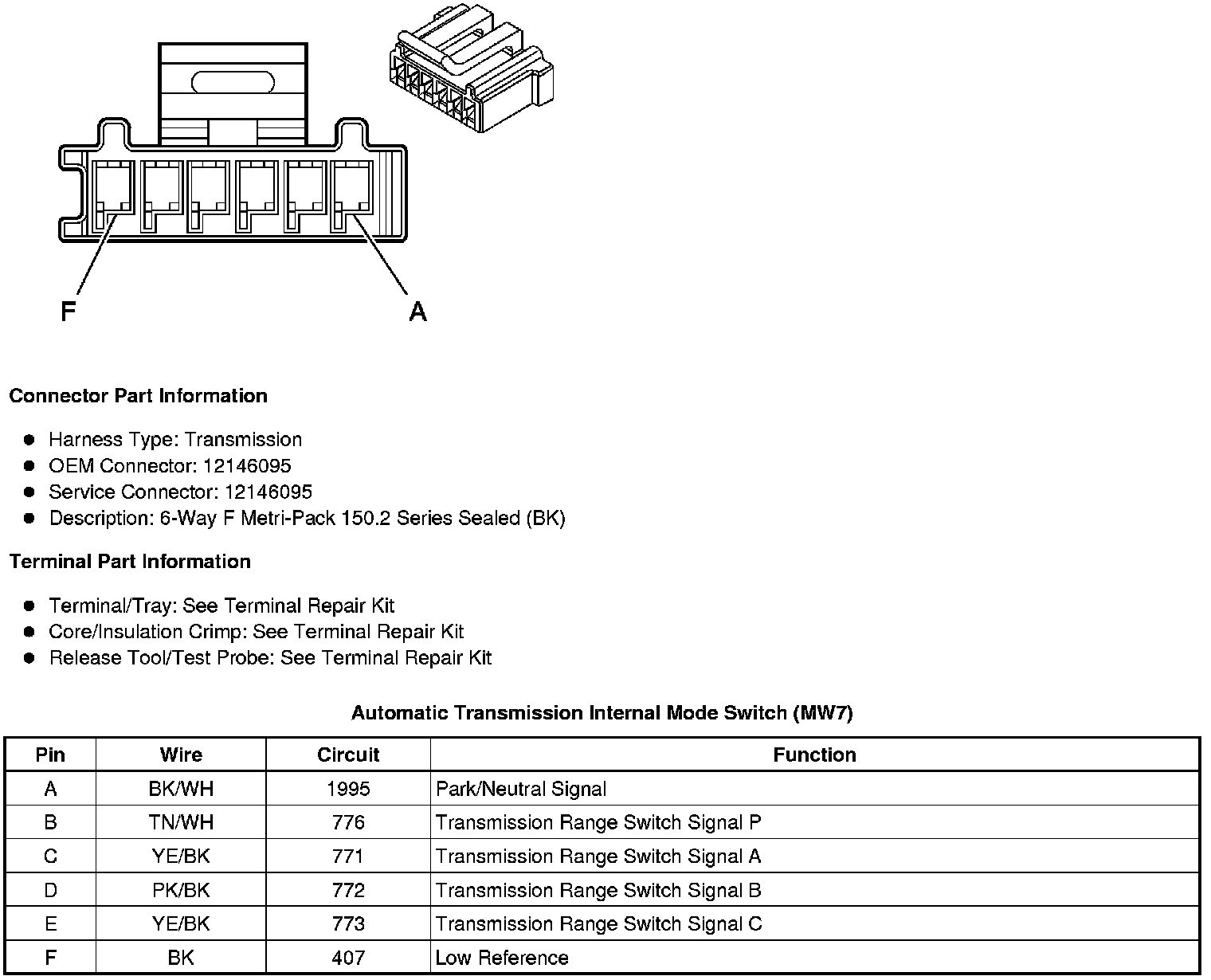

Component Connector End Views
Automatic Transmission Internal Mode Switch (MW7)
