Exhaust Manifold Heat Shield Replacement - Left Side

Exhaust Manifold Heat Shield Replacement - Left Side (V6)

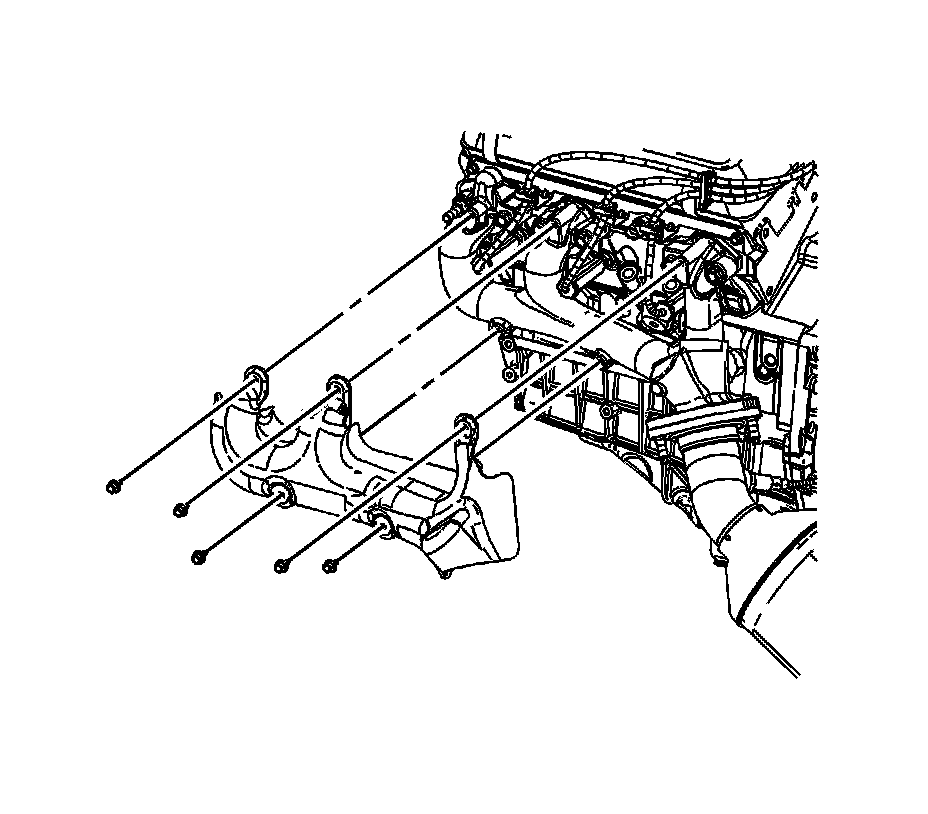

Removal Procedure




1. Remove the spark plug wires. Refer to Spark Plug Replacement Service and Repair.
2. Reposition the spark plug wires out of the way, if necessary.
3. Remove the exhaust manifold heat shield bolts and heat shield from the exhaust manifold.

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Position the exhaust manifold heat shield to the exhaust manifold and install the heat shield bolts.

Tighten the bolts to 9 Nm (80 lb in).

2. Install the spark plug wires. Refer to Spark Plug Replacement Service and Repair.
