X 100
X 100

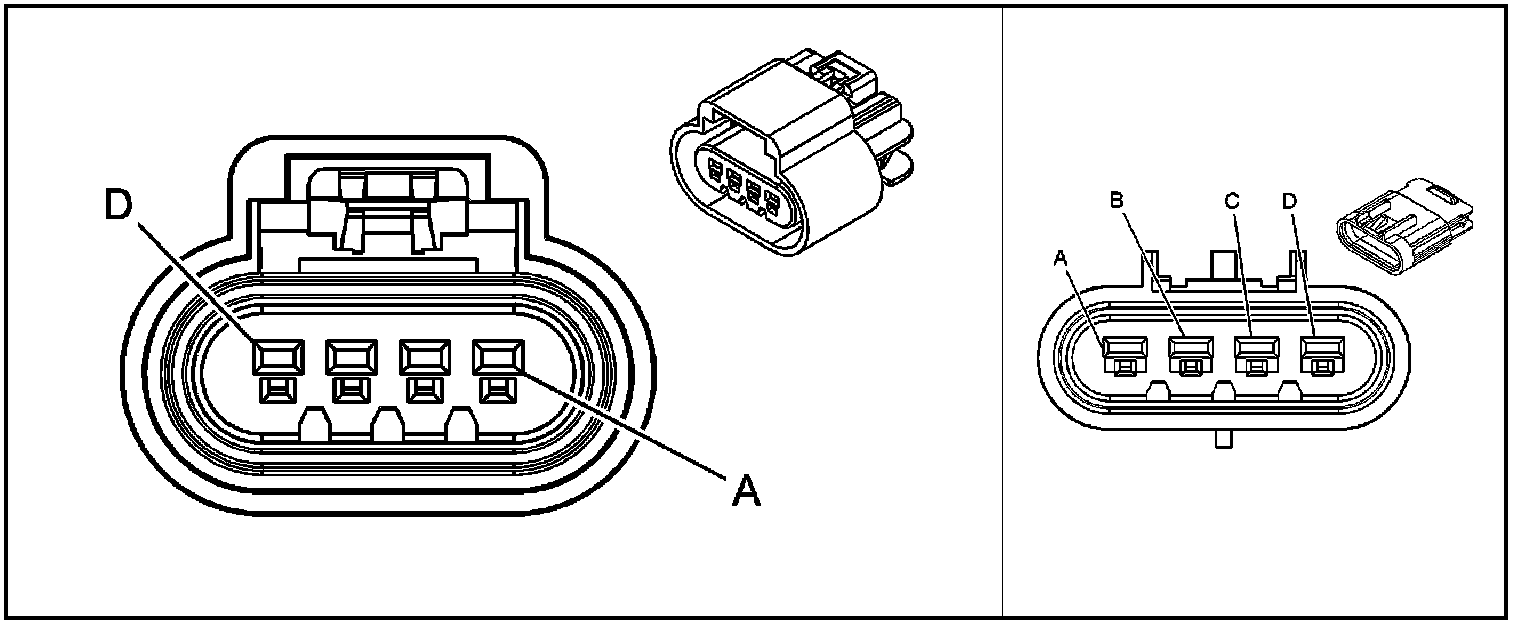

Inline Harness Connector End Views

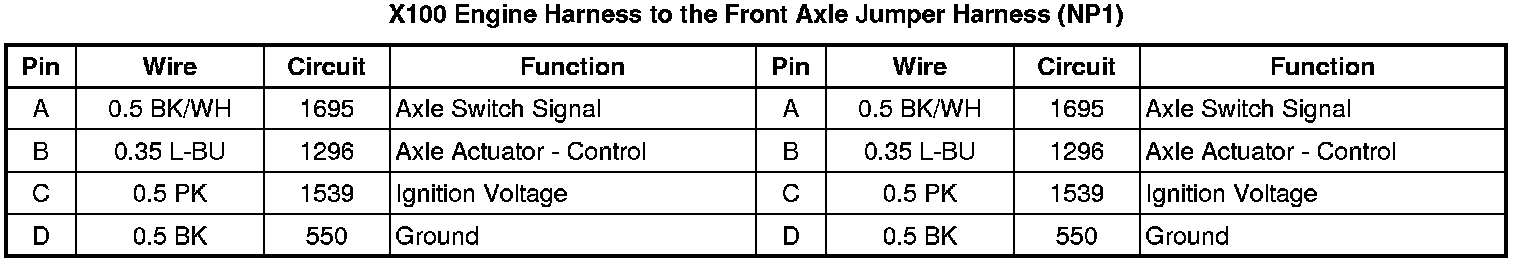

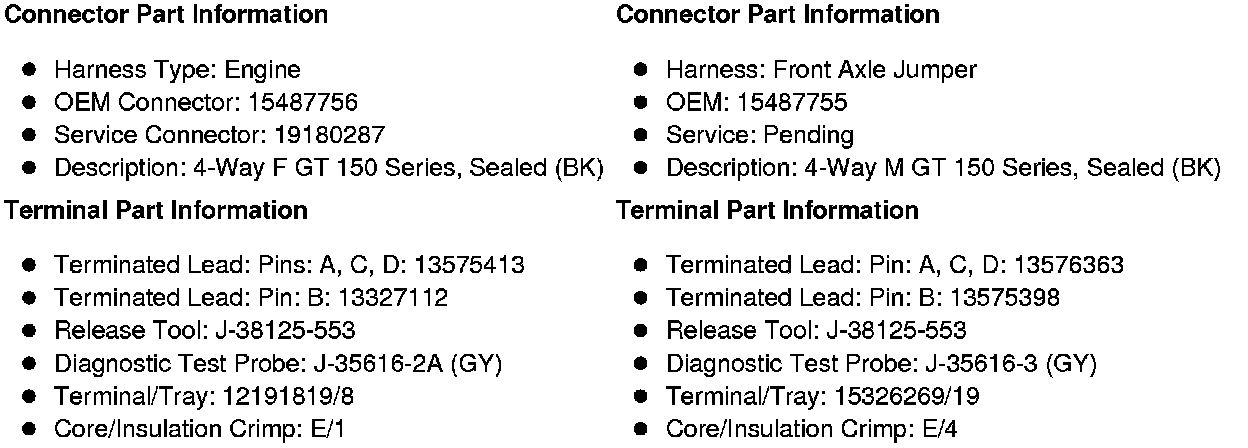

X100 Engine Harness to the Front Axle Jumper Harness (NP1)
