Automatic Transmission Input Shaft Speed (ISS) Sensor (M30)
Automatic Transmission Input Shaft Speed (ISS) Sensor (M30)

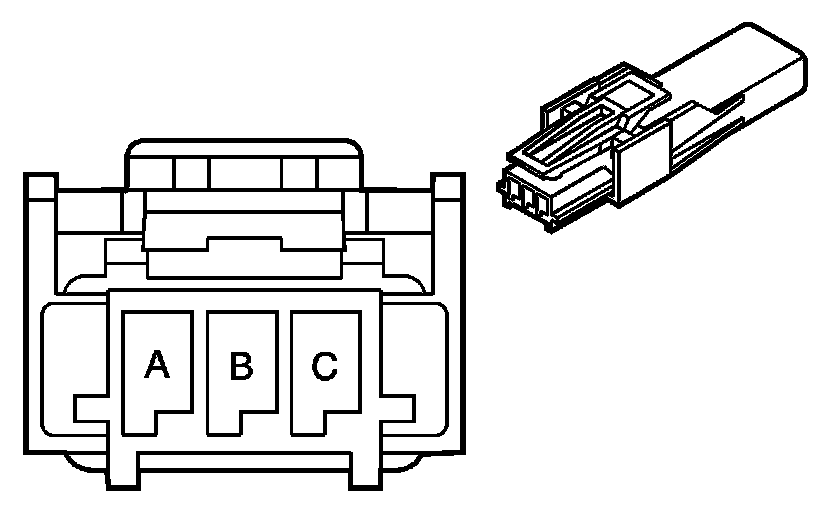

Component Connector End Views

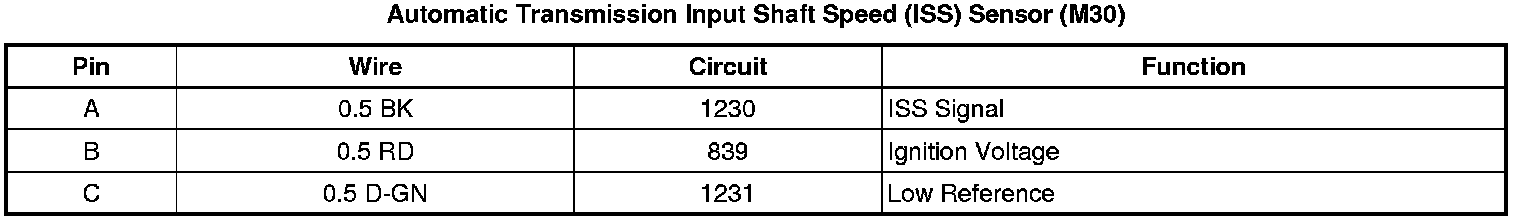

Automatic Transmission Input Shaft Speed (ISS) Sensor (M30)
