GMC Truck
>>
2010
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
Fuel Pump Control Unit
Fuel Pump Control Unit

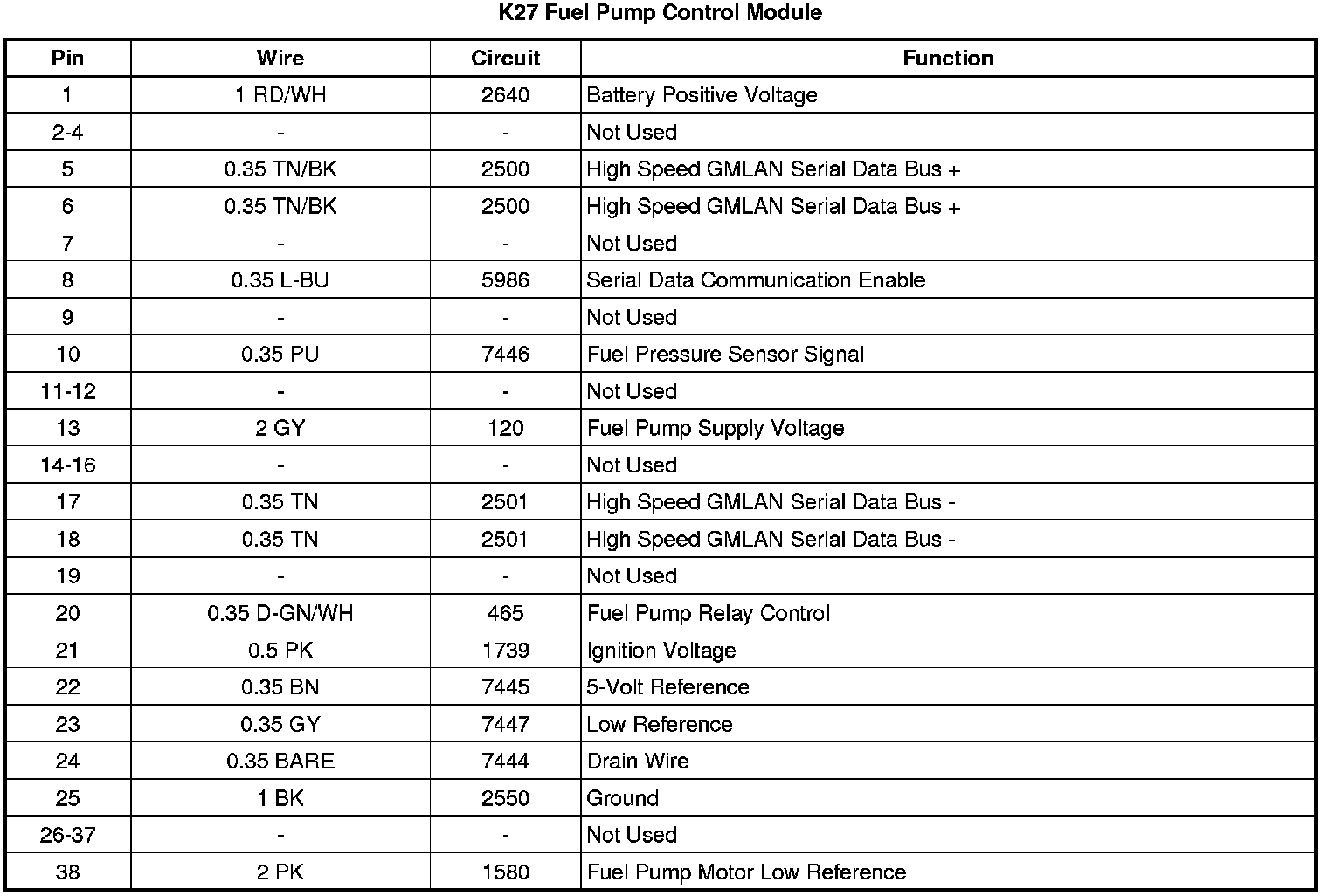

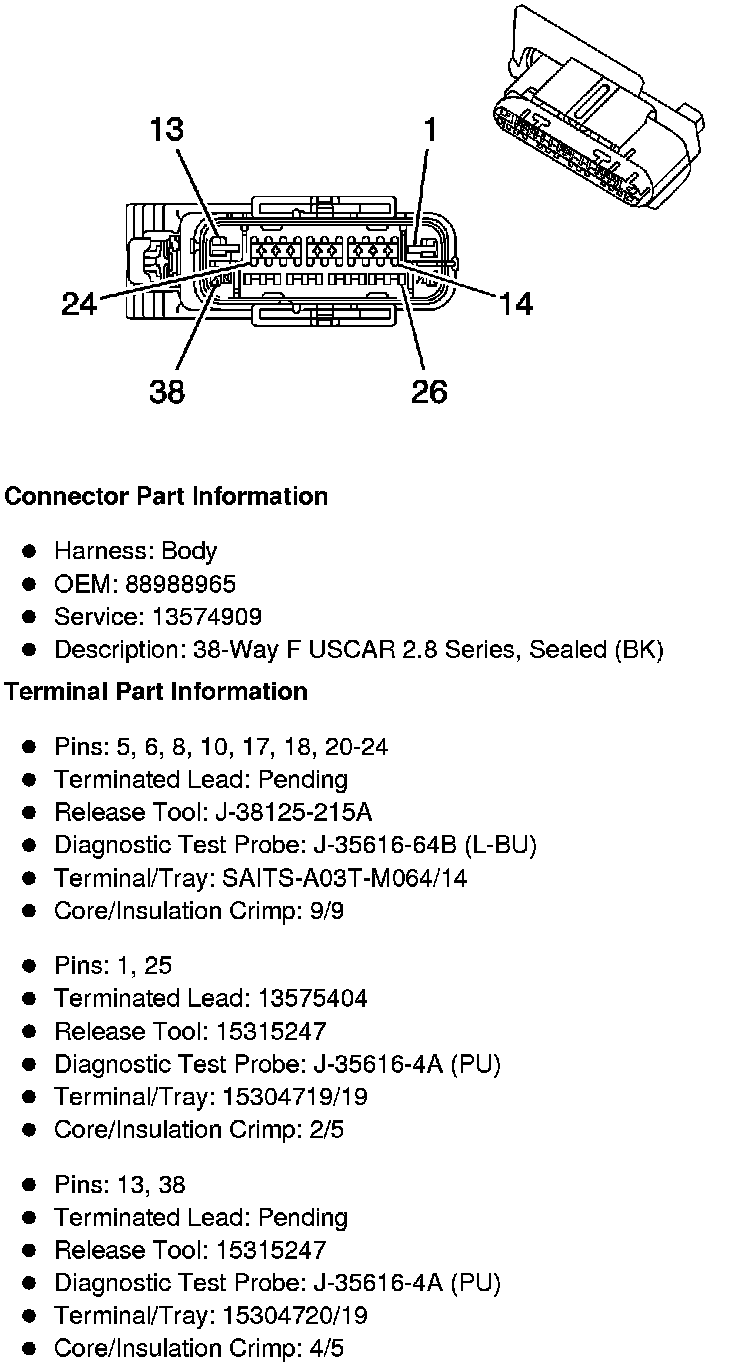

K27 Fuel Pump Control Module
