Home >> GMC Truck >> 2002 >> W 3500 Forward L4-4.8L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Chart of ECM Input/Output

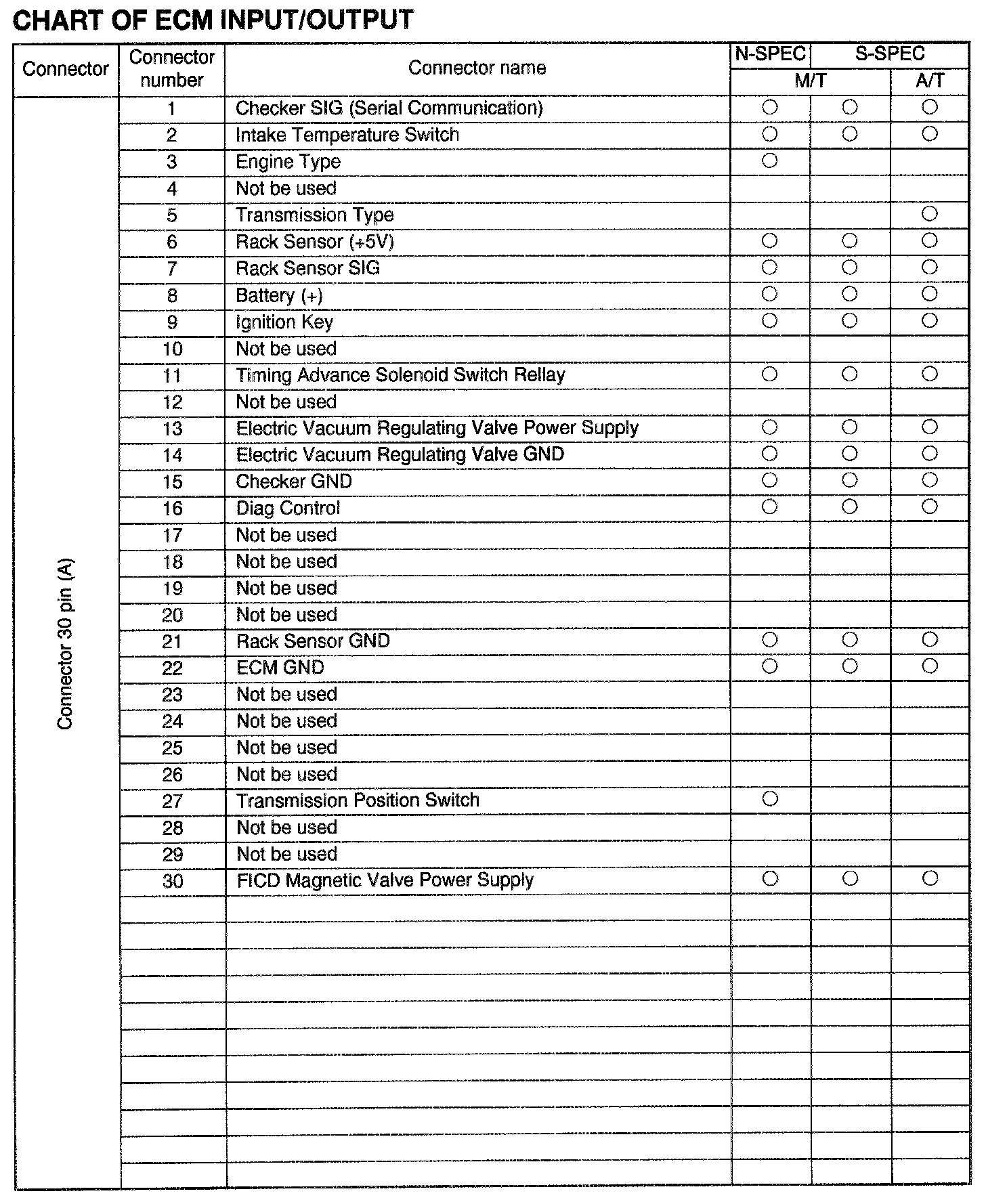

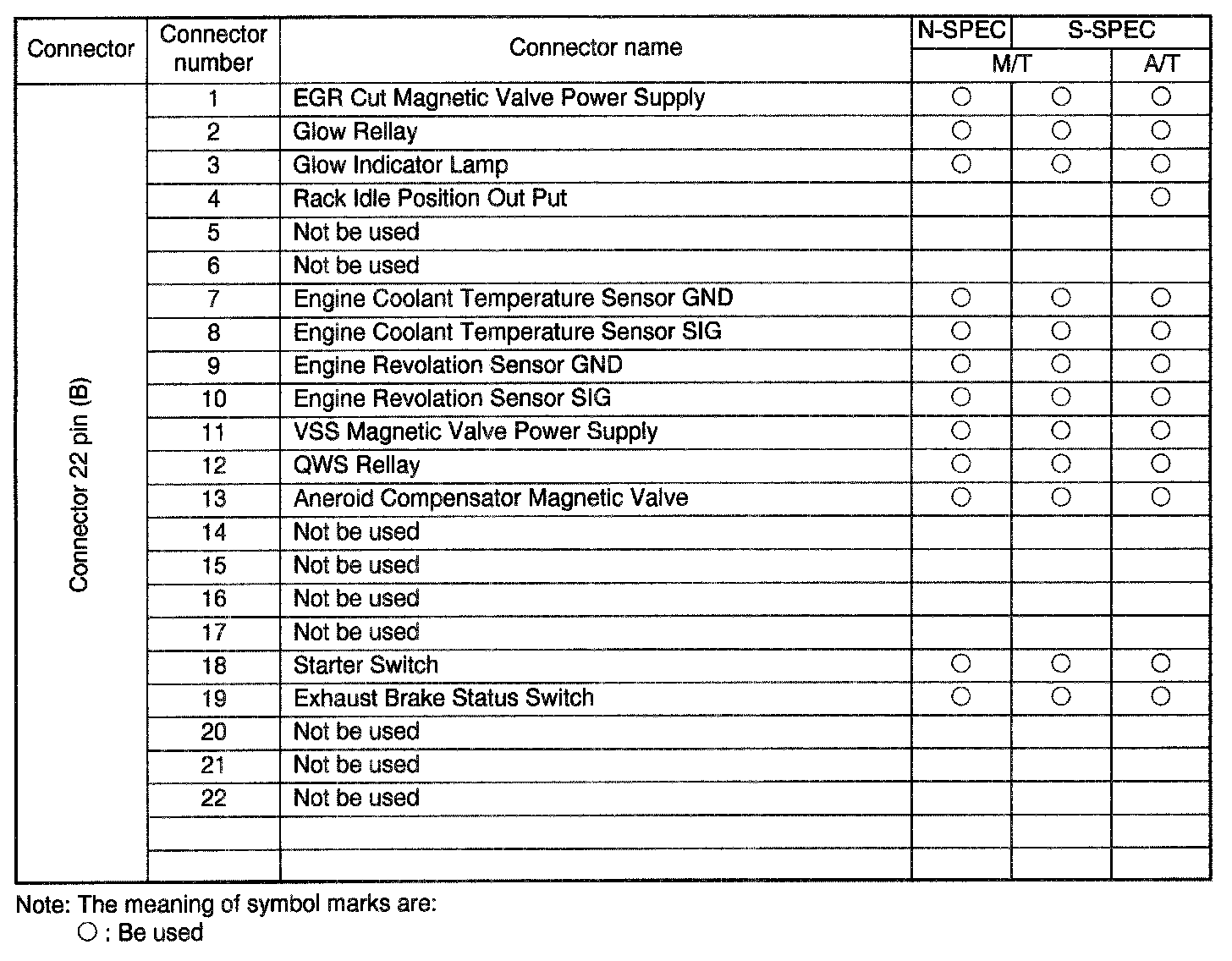

Chart of ECM Input/Output
