Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

Removal Procedure

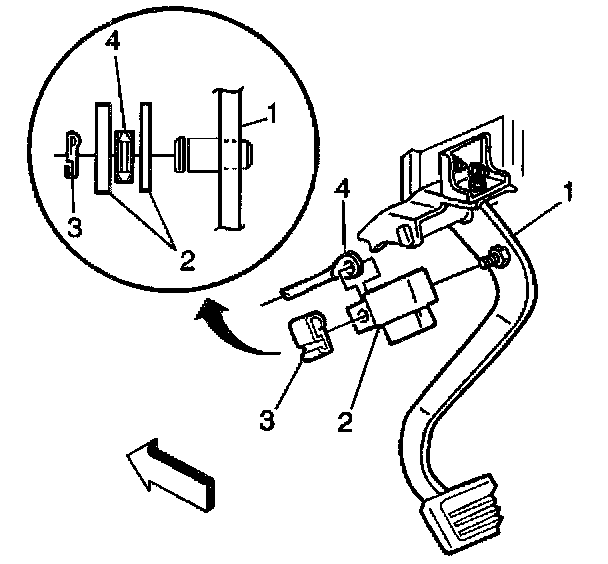

1. Remove the booster pushrod (4) and stop lamp switch (2) from brake pedal (1).
2. Detach and pivot the instrument panel down to access the brake pedal mounting bolt.
3. Remove the nut from the brake pedal pivot bolt.
4. Remove the brake pedal pivot bolt.
5. Remove the brake pedal (1), spacers and bushings from the vehicle.

Installation Procedure





1. Install the brake pedal (1) to the vehicle.
2. Install the through bolt, spacers and bushings to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the nut to the brake pedal pivot bolt.
^ Tighten the nut to 45 Nm (33 ft. lbs.).
4. Pivot and attach the instrument panel.

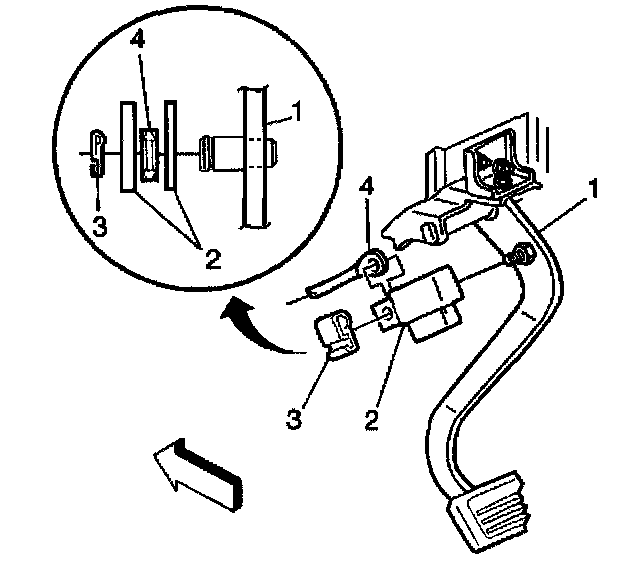

5. Install the booster pushrod (4) and the stop lamp switch (2) to the brake pedal (1).
