GMC Truck
>>
2002
>>
S15/T15 Sonoma P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Manual Control
>>
A/C Compressor Clutch Diode
A/C Compressor Clutch Diode

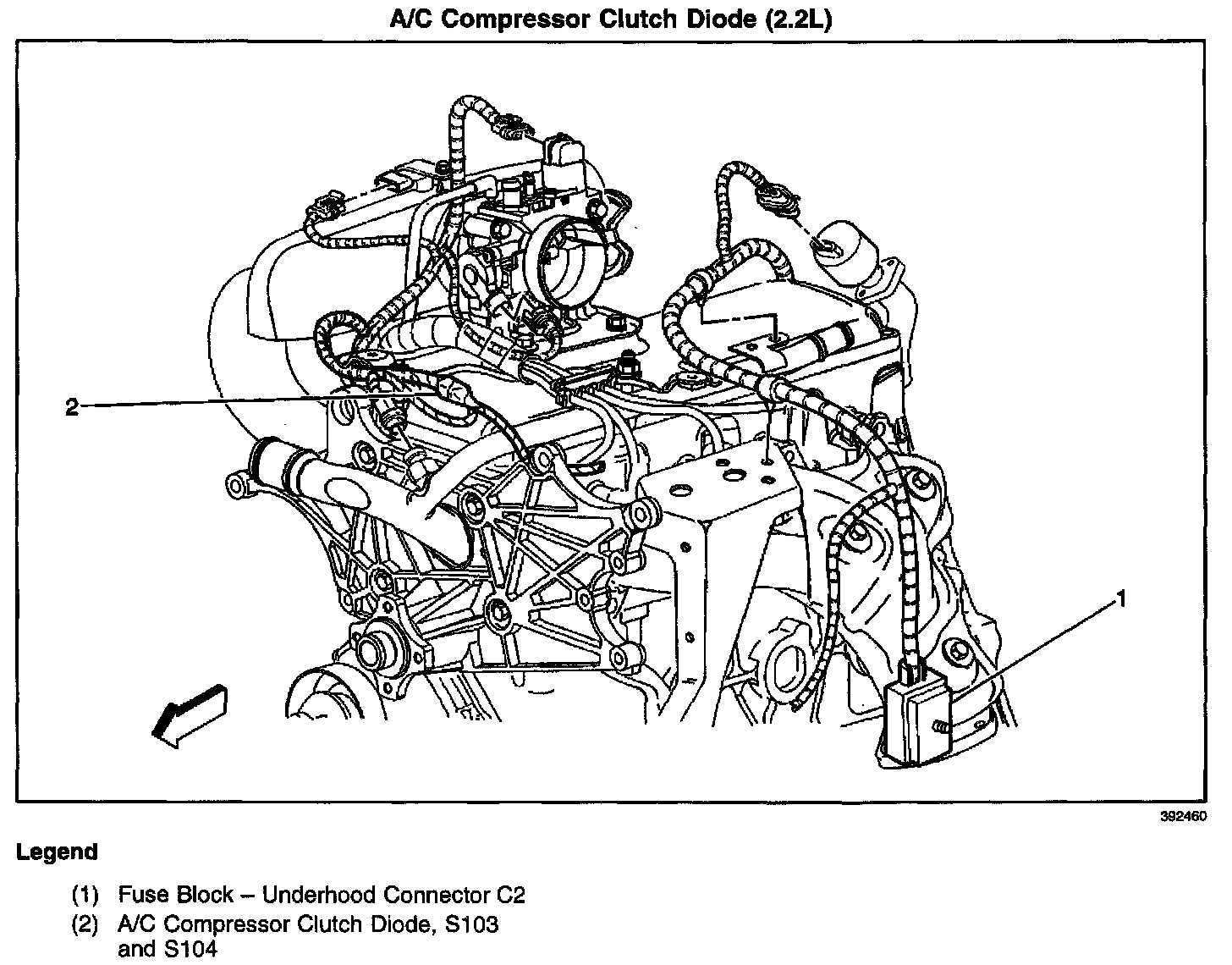

Locations View:

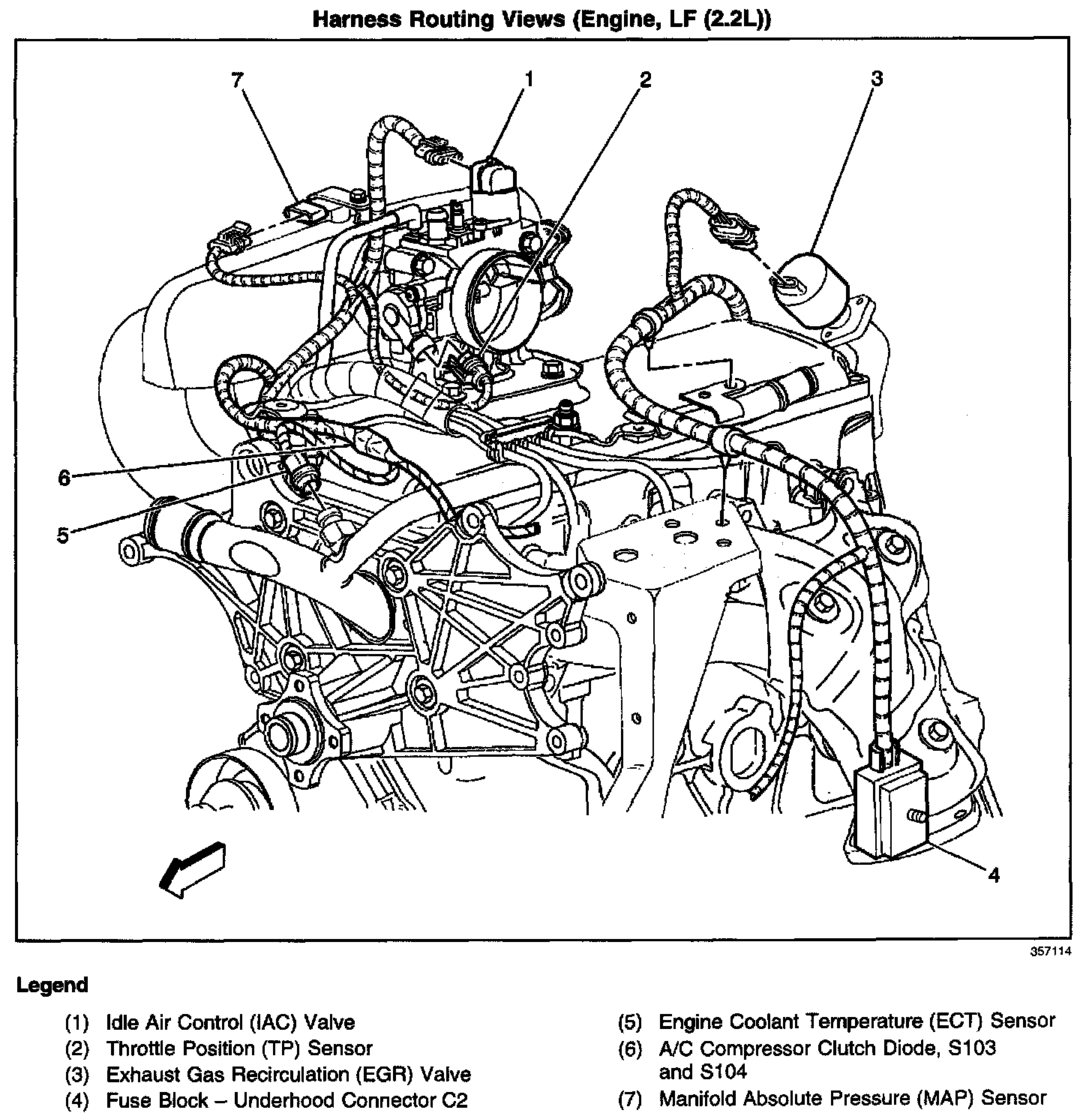

Harness Routing Views (Engine, LF (2.2 L)):
