Home
>>
GMC Truck
>>
2002
>>
S15/T15 Sonoma P/U 2WD L4-2.2L VIN 5 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
>>
Pressure, Temperature And VSS
Pressure, Temperature And VSS

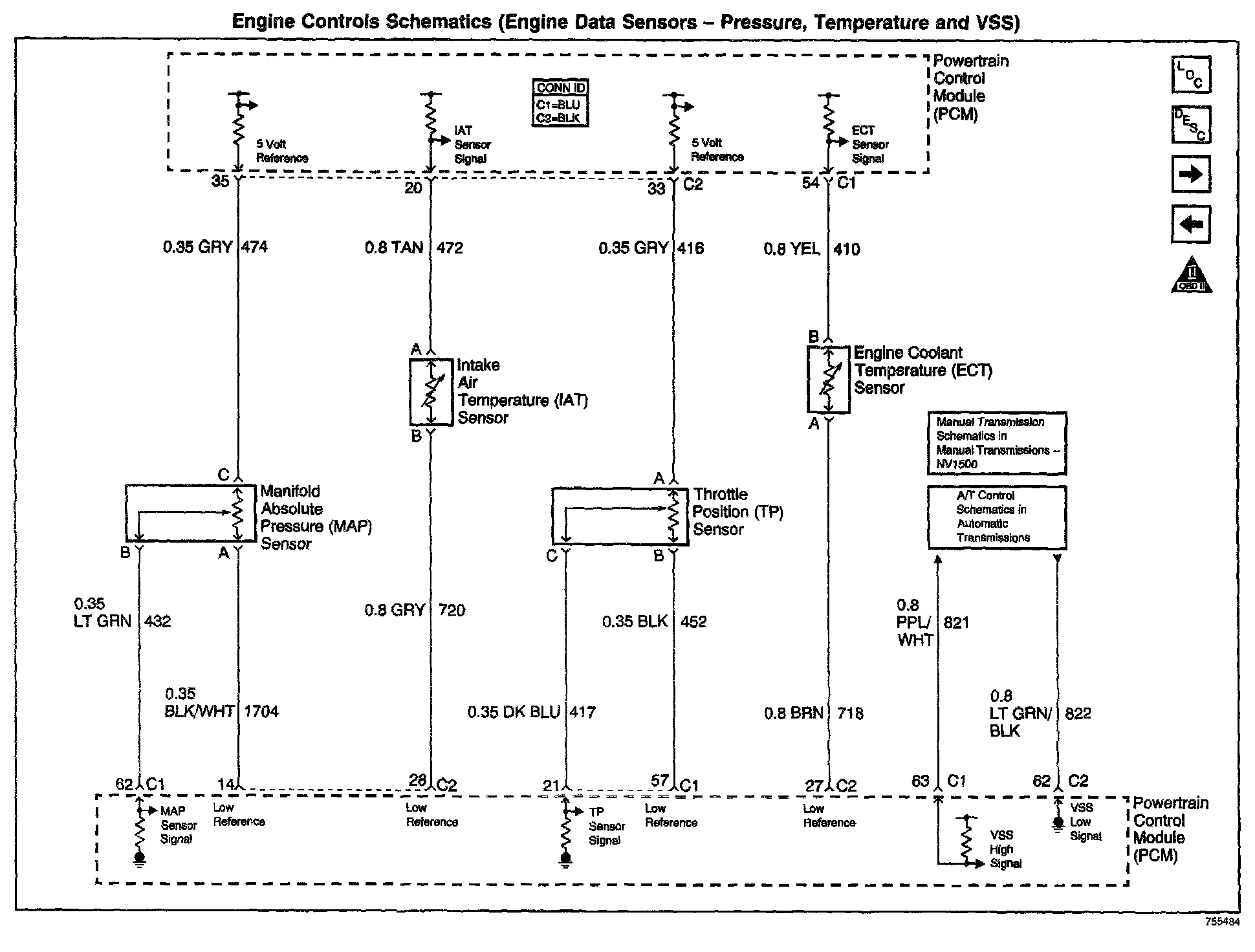

Engine Controls Schematics: Engine Data Sensors - Pressure, Temperature And VSS:
