Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
GMC Truck
>>
2002
>>
S15/T15 Jimmy 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Specifications
>>
Mechanical Specifications
>>
Front Drive Axle
Front Drive Axle
Specifications

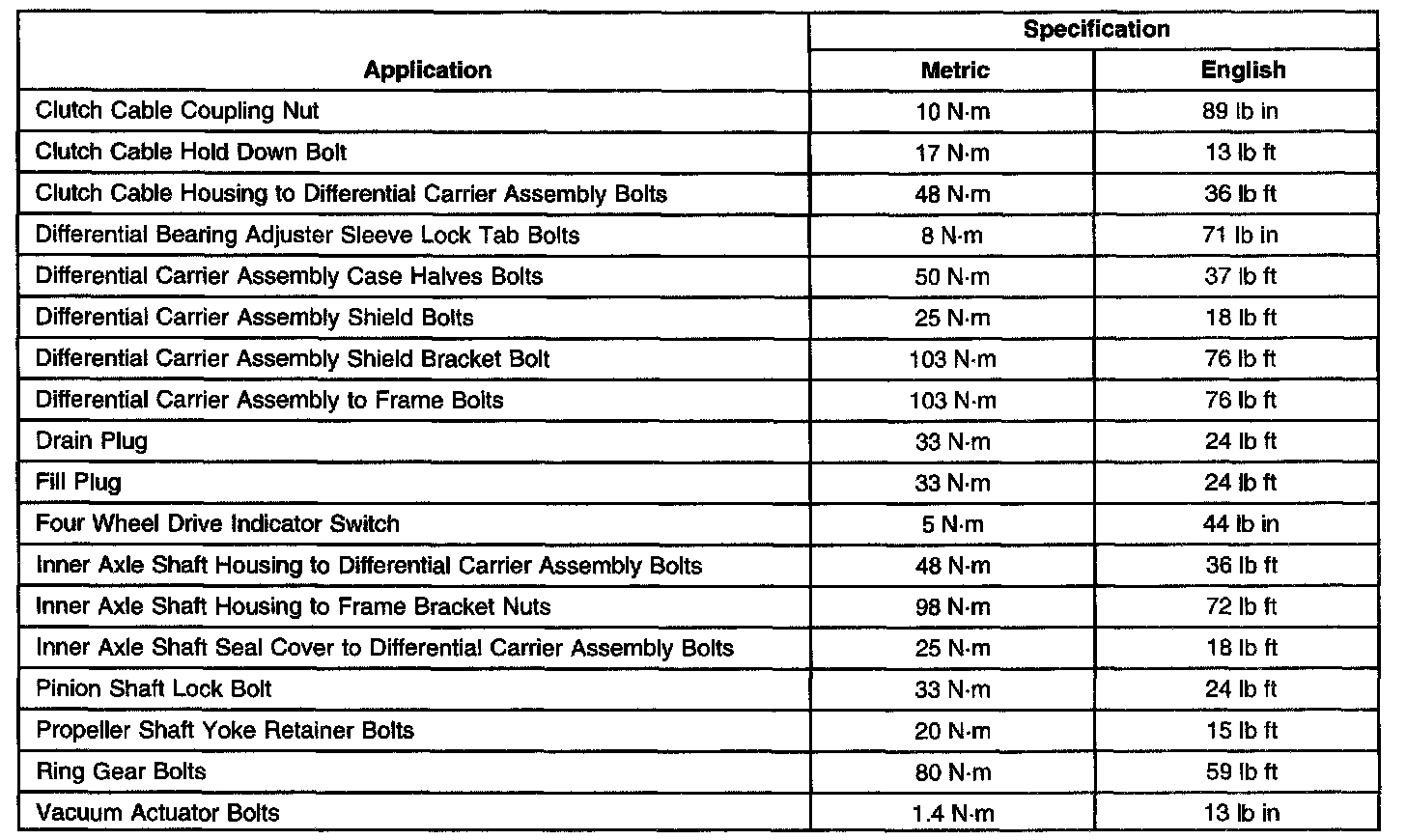

Fastener Tightening Specifications

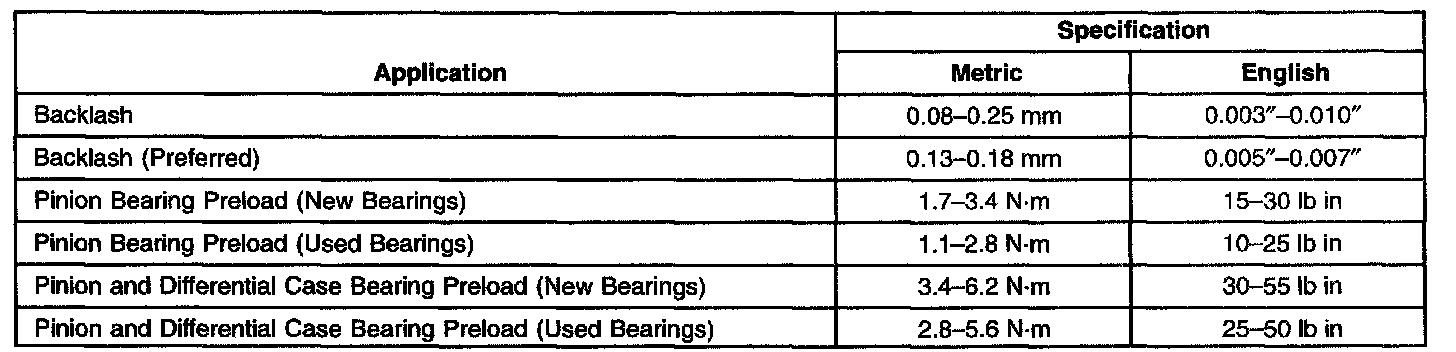

Pinion Preload and Backlash
