Upper Control Arm Bushings Replacement

Upper Control Arm Bushings Replacement

^ Tools Required
- J 21474-01 Control Arm Bushing Service Set

Removal Procedure





1. Remove the upper control arm.
2. Install the upper control arm in a vise.

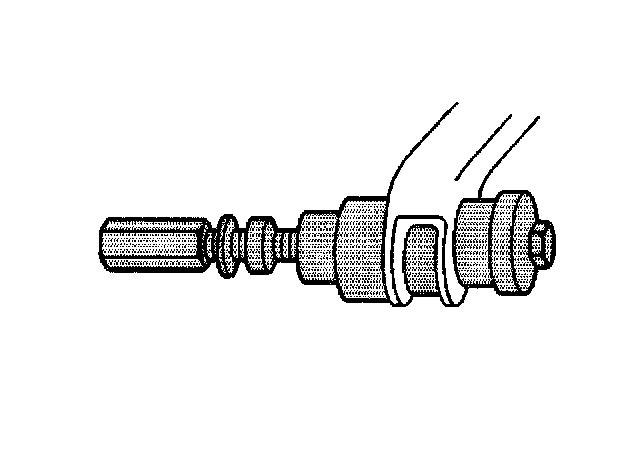

3. Remove the upper control arm bushings using J 21474-01.

Installation Procedure

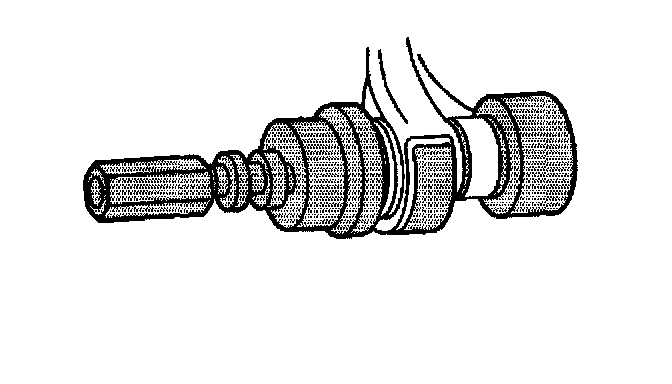

1. Install the upper control arm bushings using J 21474-01.
2. Remove the upper control arm from the vise.
3. Install the upper control arm.
