Lower Control Arm Bushings Replacement

Lower Control Arm Bushings Replacement

^ Tools Required
- J 21474-01 Control Arm Bushing Service Set

Removal Procedure
1. Remove the lower control arm.

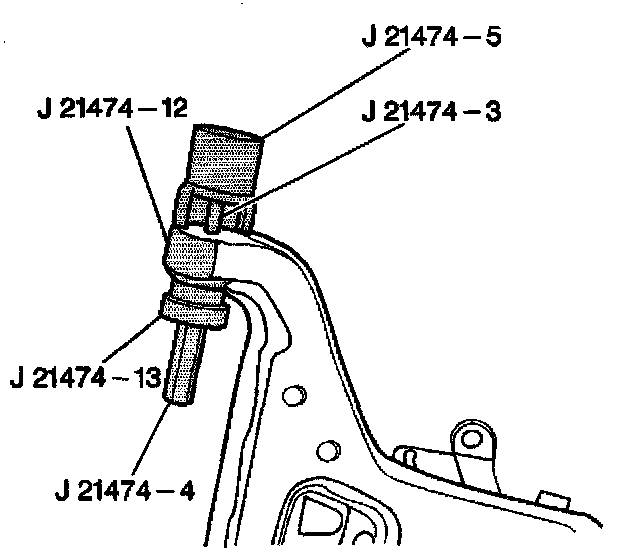

2. Remove the front bushing. Use the J 21474-01.

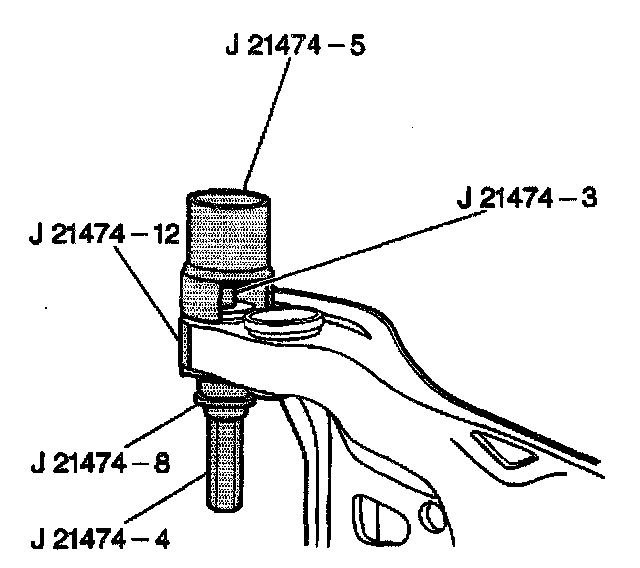

3. Remove the rear bushing. Use the J 21474-01

Installation Procedure

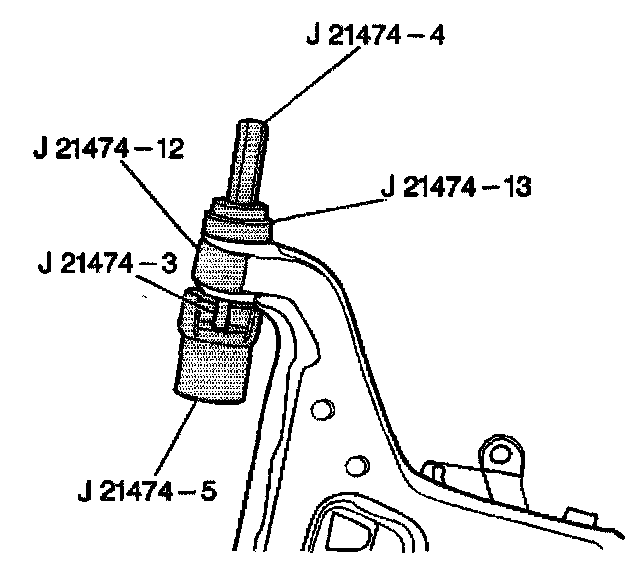

1. Install the front bushing. Use the J 21474-01

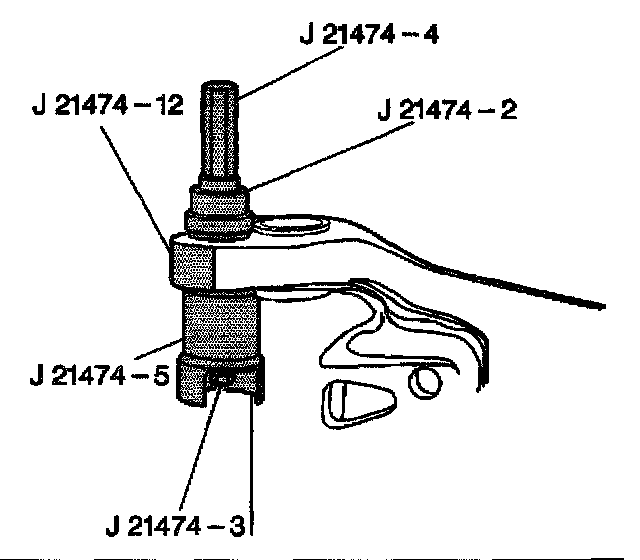

2. Install the rear bushing. Use the J 21474-01.
3. Install the lower control arm.
