NVG 233-NP1 (Two Speed Selectable)

Transfer Case Fluid Replacement

Removal Procedure

Important: When servicing the transfer case, use only hand tools when removing the fill or drain plugs.





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the transfer case shield.

Important: If the drain or fill plugs are damaged and need to be replaced, use only replacement plugs that are made from aluminum.

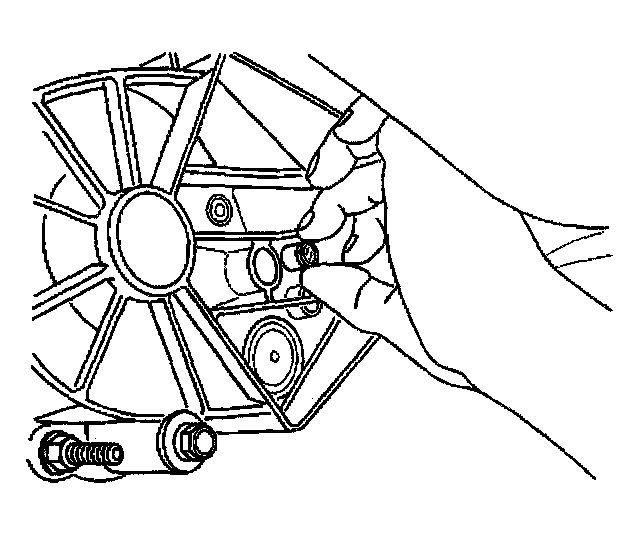

3. Remove the transfer case fill plug.

Important: When draining the transfer case oil, always use the proper container for draining.

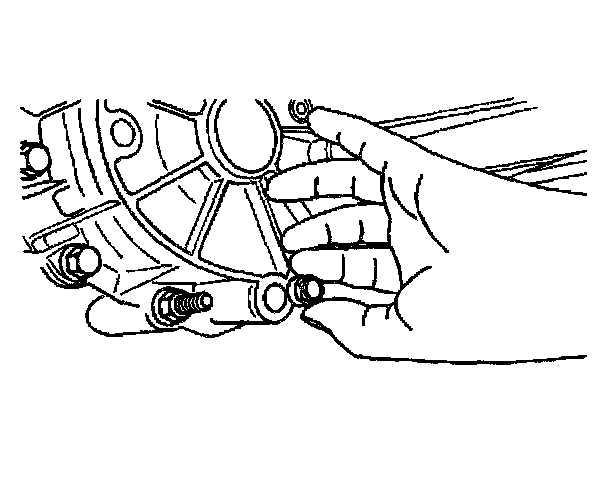

4. Remove the transfer case drain plug.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. In stall the transfer case drain plug.
^ Tighten the transfer case drain plug to 20 Nm (15 ft. lbs.).
2. Fill the transfer case with the proper amount of approved fluid.

Notice: Refer to Fastener Notice in Service Precautions.

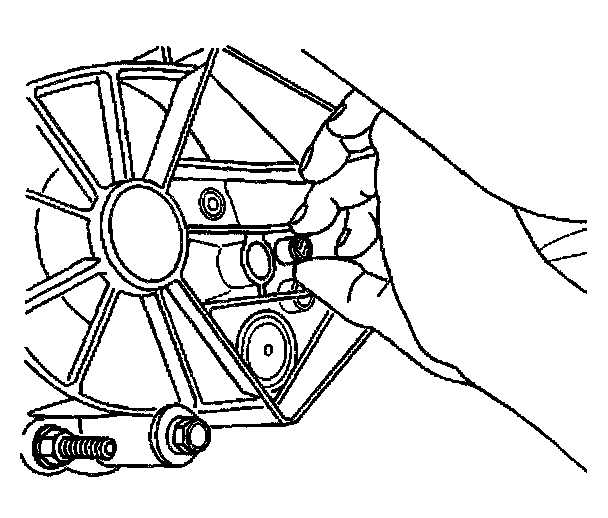

3. Install the transfer case fill plug.
^ Tighten the oil fill plug to 20 Nm (15 ft. lbs.).
4. Install the transfer case shield.
5. Lower the vehicle. Refer to Vehicle Lifting.
