Air Register: Service and Repair

REMOVAL PROCEDURE




1. Remove the passenger front seat and the driver front seat.
2. Remove the center floor console.
3. Remove the passenger and driver door sill plates.
4. Remove the passenger and driver side kick panels.

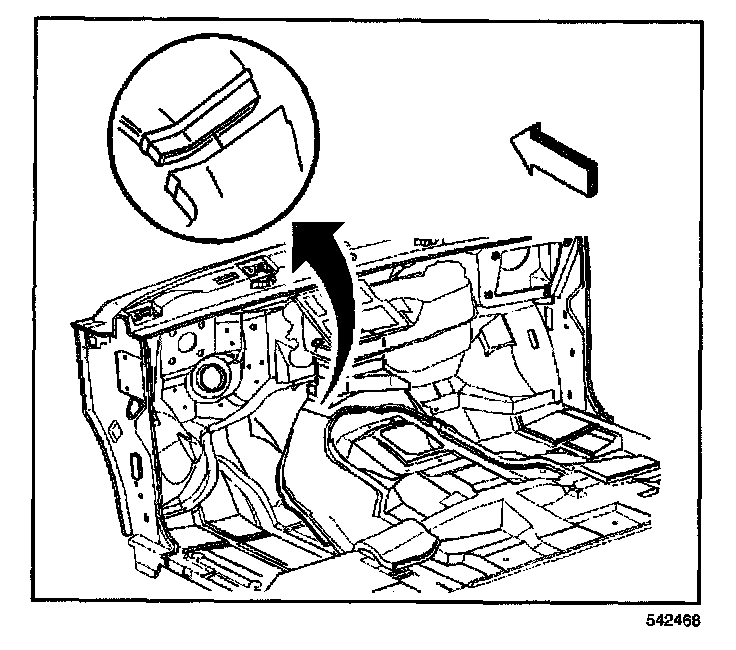

5. Pull the carpet back in order to access the rear floor air outlets.
6. Remove the passenger seat wiring harness from the right rear floor air outlet.
7. Remove the rear floor air outlets from the center floor air outlet.
8. Remove the rear floor air outlets from the vehicle.

INSTALLATION PROCEDURE




1. Install the rear floor air outlets to the center floor air outlet.
2. Install the passenger seat wiring harness to the right rear floor air outlet.
3. Install the carpet.
4. Install the passenger and driver side kick panels.
5. Install the passenger and driver door sill plates.
6. Install the center floor console.
7. Install the passenger front seat and the driver front seat.
