Oil Level Sensor: Service and Repair

Engine Oil Level Sensor and/or Switch Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

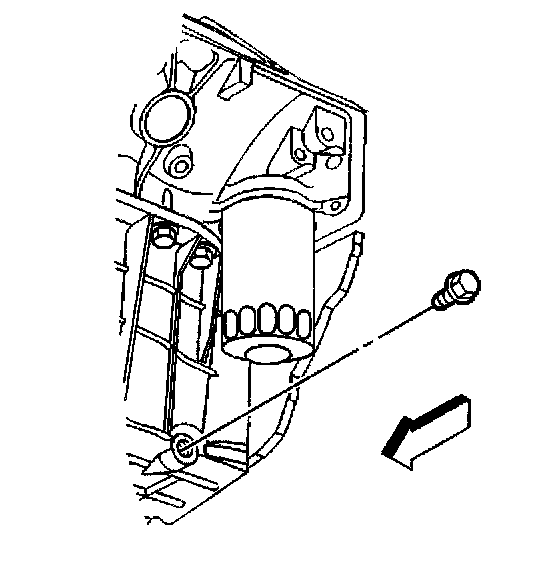

2. Remove the oil pan drain plug and drain the oil into a suitable container.

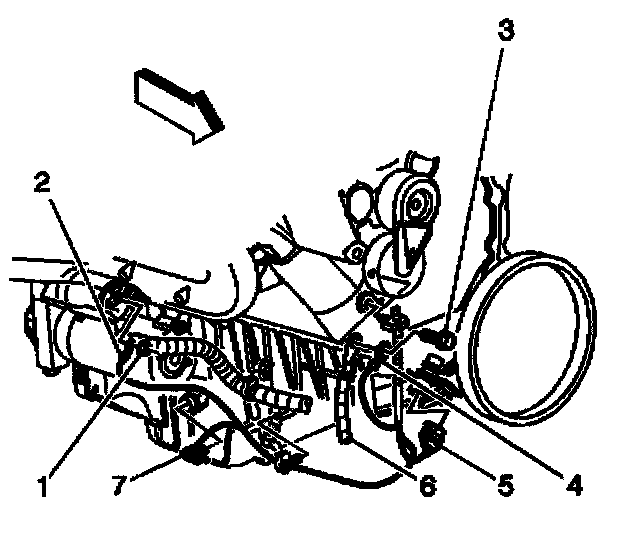

3. Disconnect the oil level sensor electrical connector (7).

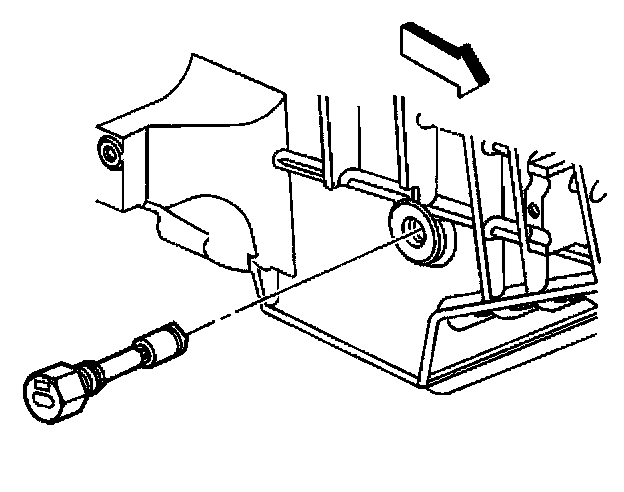

4. Remove the oil level sensor.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

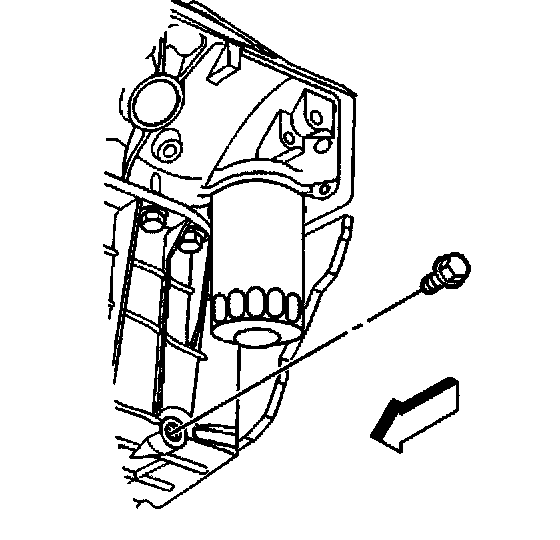

1. Install the oil pan drain plug into the oil pan.
- Tighten the oil pan drain plug to 25 Nm (18 ft. lbs.).

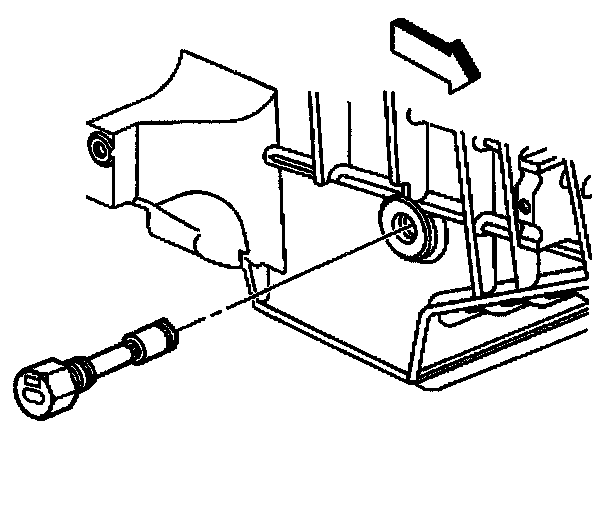

2. Install the oil level sensor.
- Tighten the oil level sensor to 20 Nm (15 ft. lbs.).

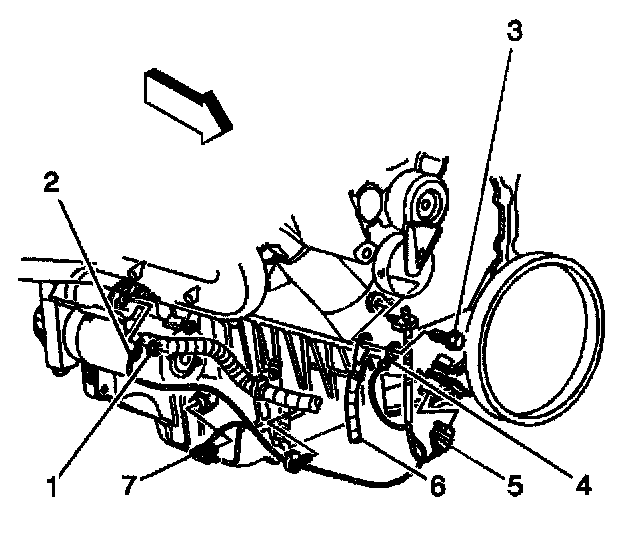

3. Connect the oil level sensor electrical connector (7).
4. Lower the vehicle.
5. Fill the engine with the proper quantity and grade of oil.
