Transfer Case: Locations

Transfer Case Control Component Views

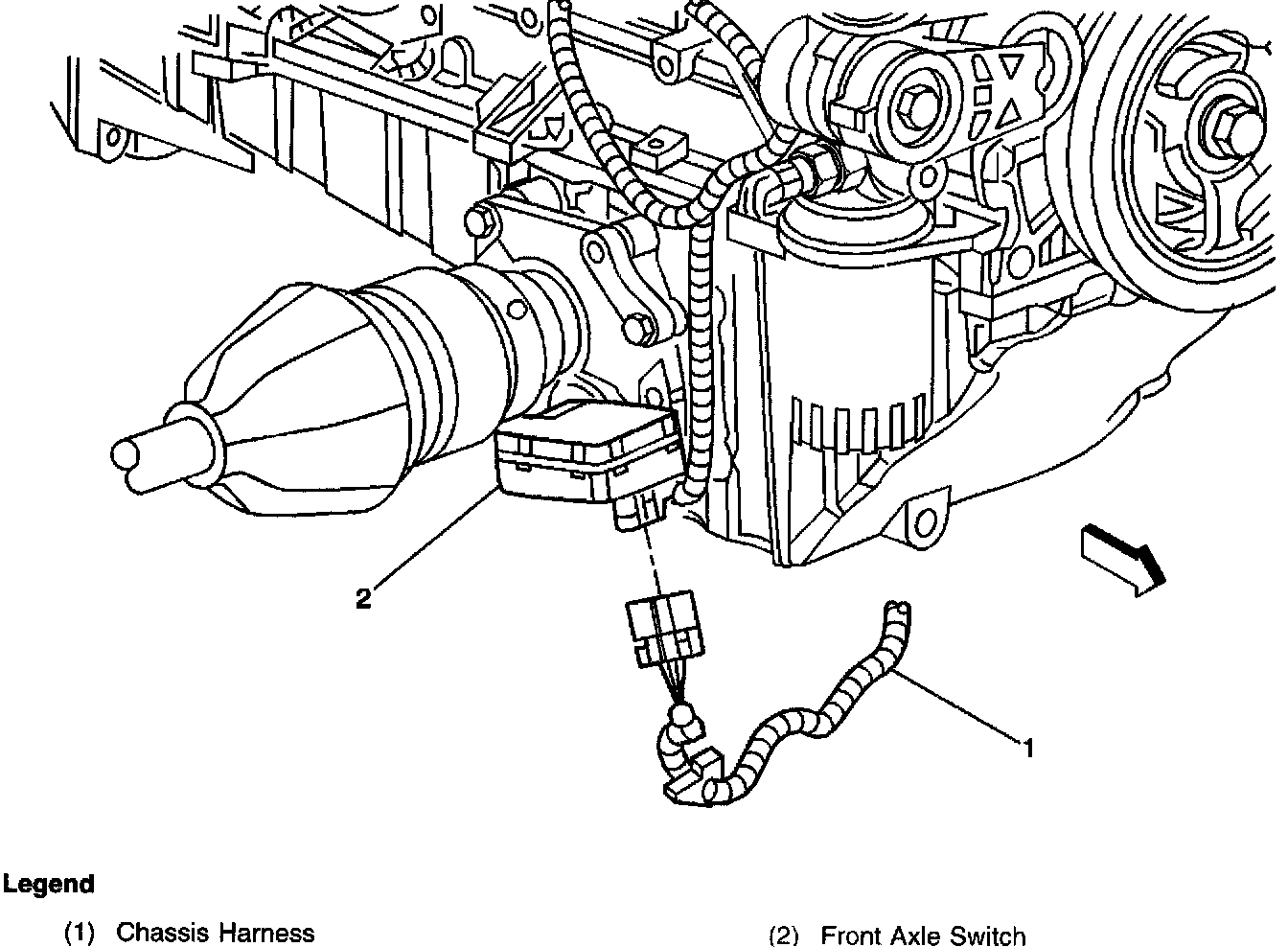

Engine, Lower Right

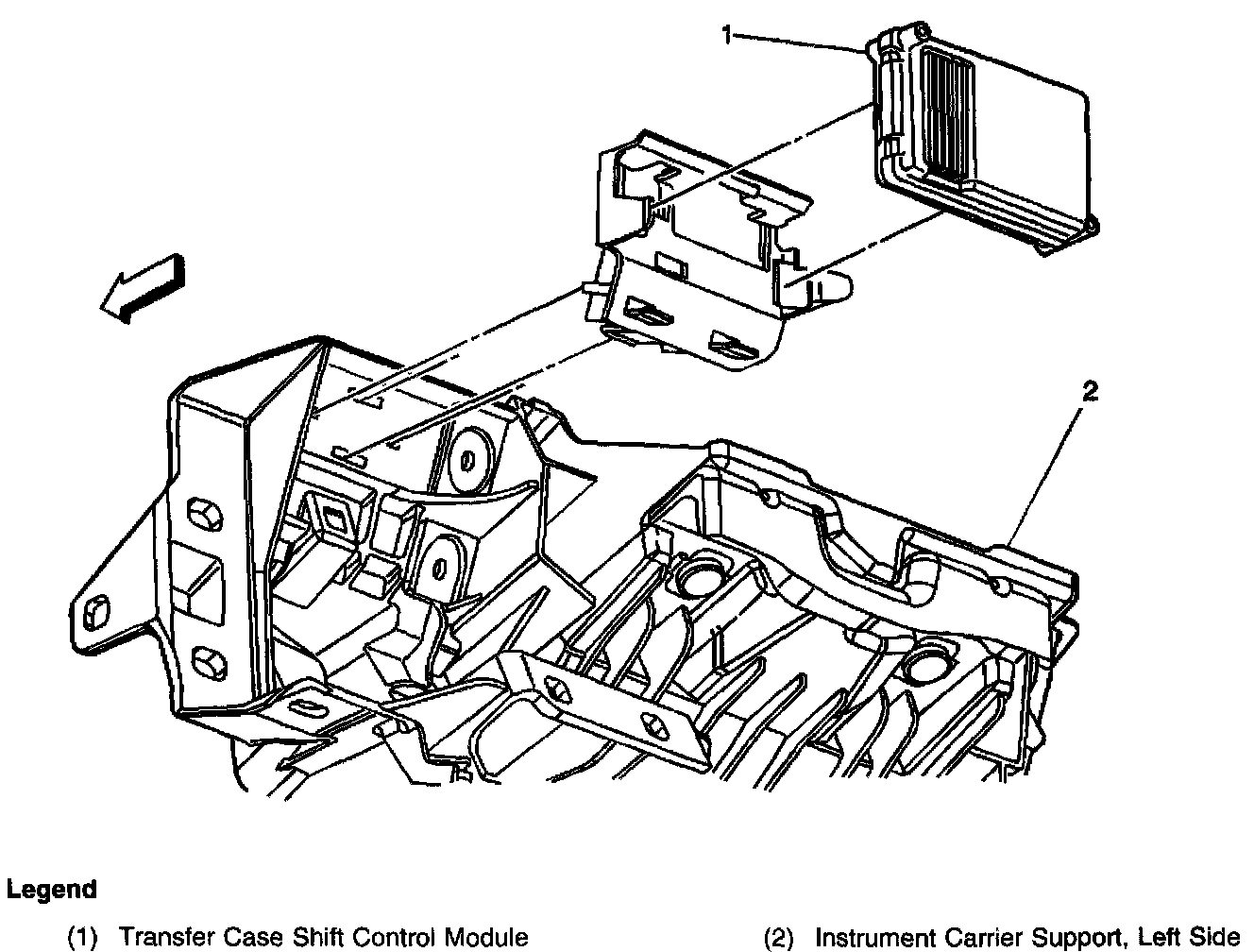

Instrument Carrier Support, Lower Left

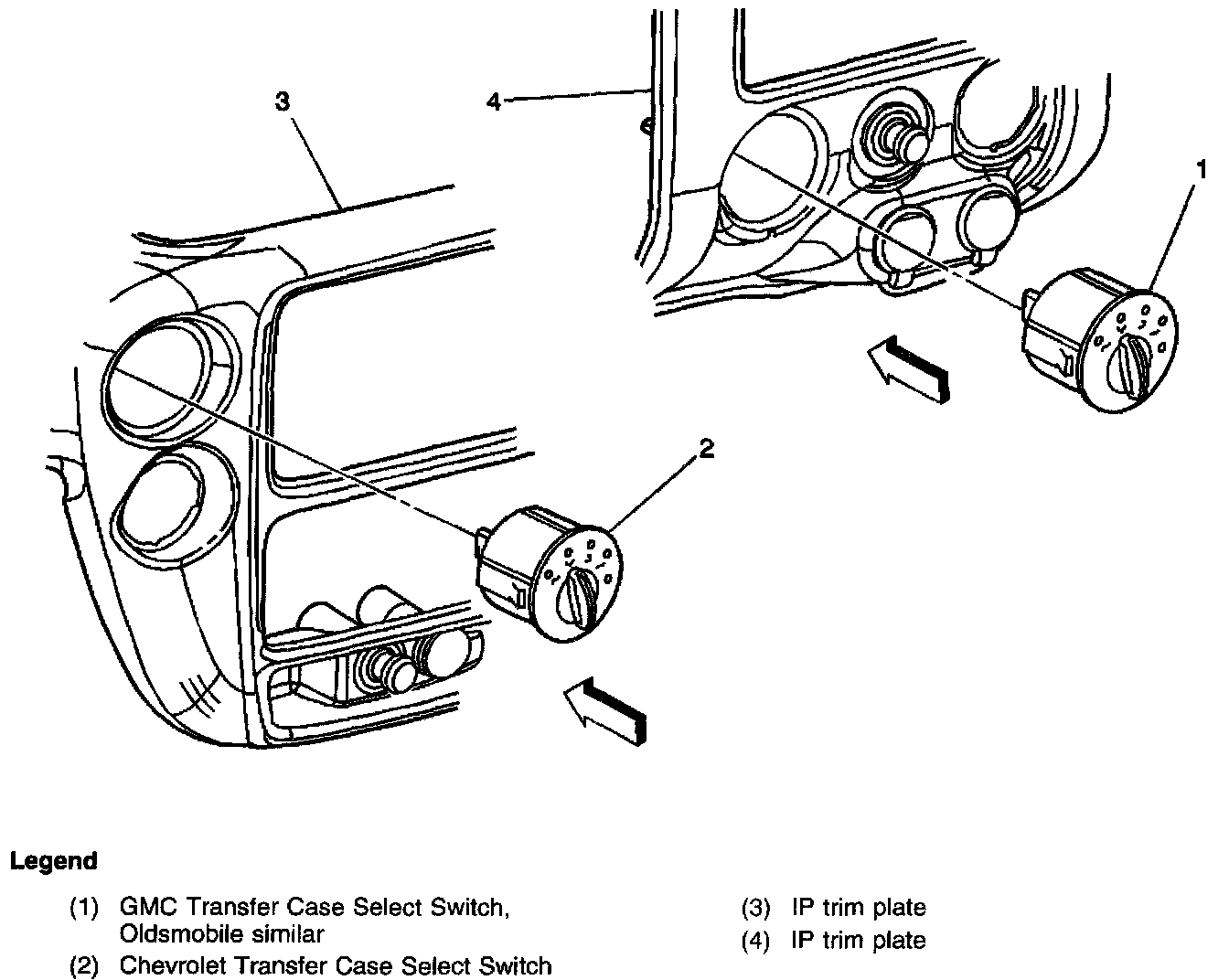

Transfer Case Select Switch

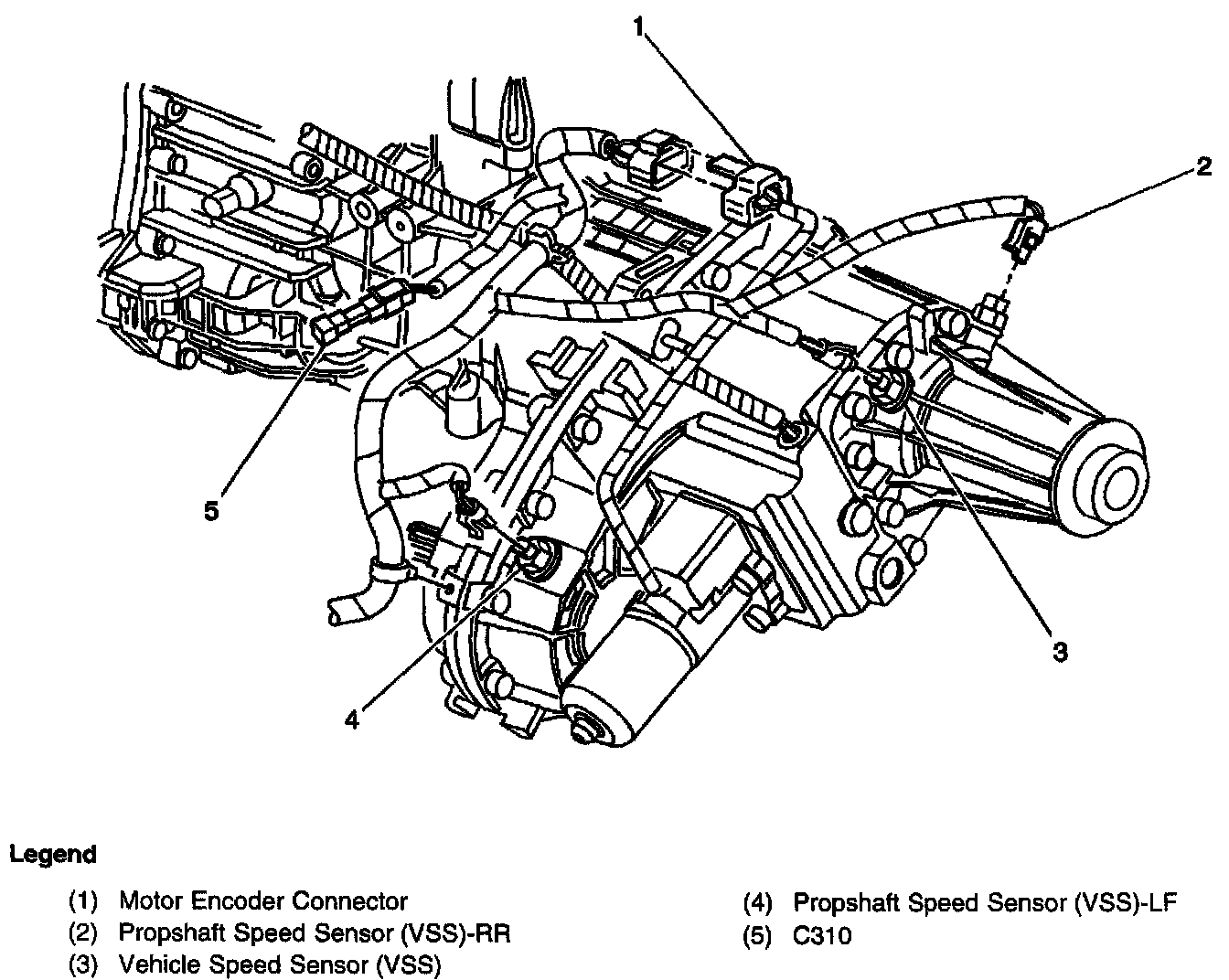

Transfer Case
