GMC Truck
>>
2002
>>
Envoy 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views

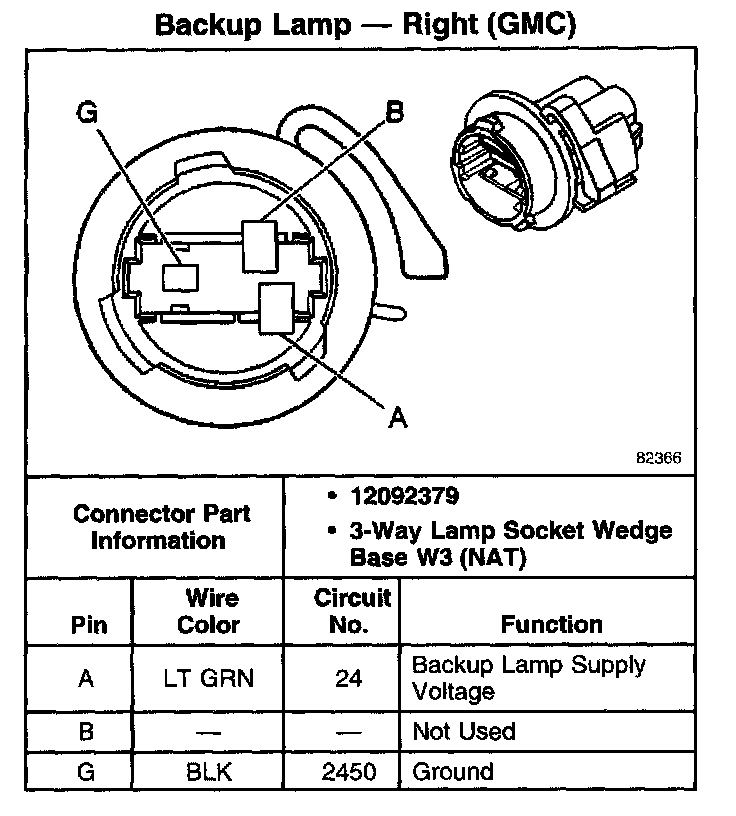

Backup Lamp - Right (GMC):

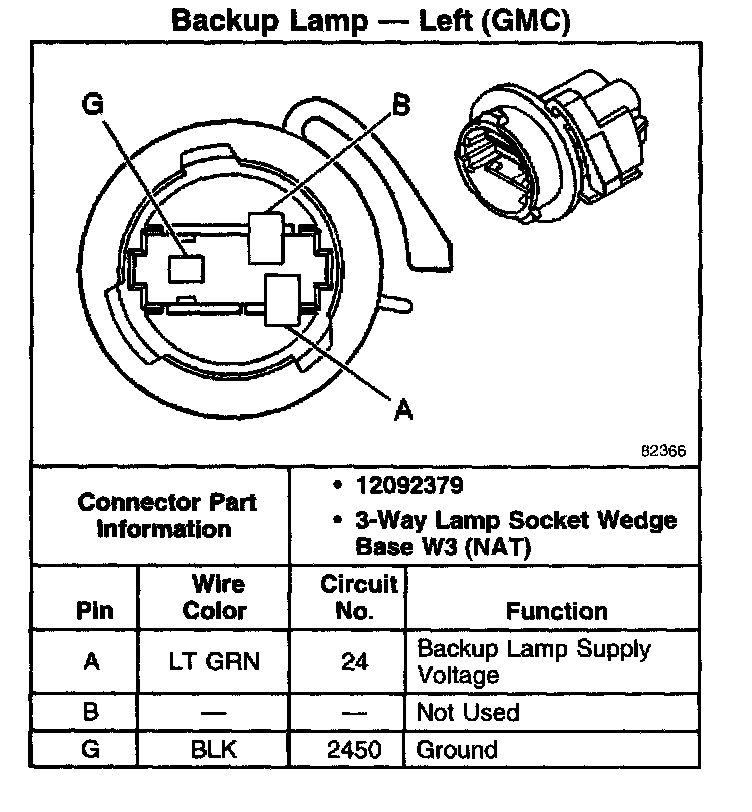

Backup Lamp - Left (GMC):
