Evaporator Block Replacement - Auxiliary

REMOVAL PROCEDURE




1. Remove the HVAC module-auxiliary.
2. Remove the torx studs from the evaporator block-auxiliary.

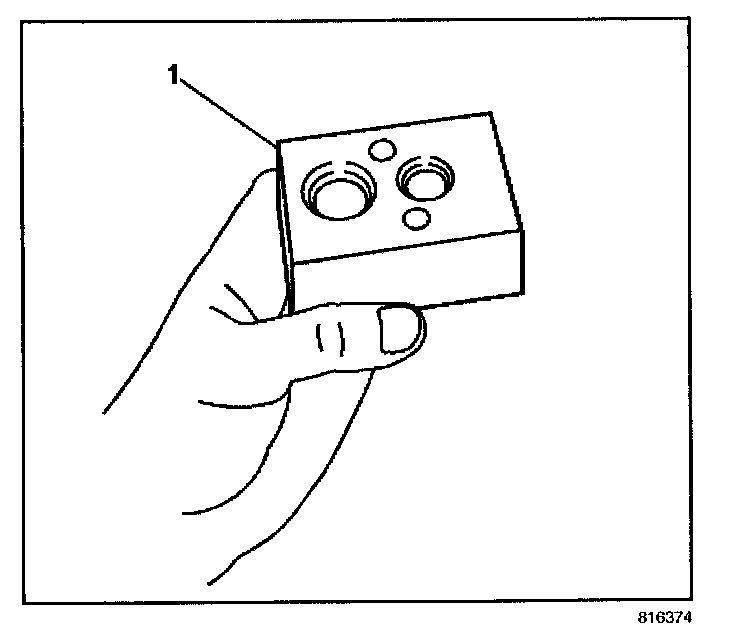

3. Remove the evaporator block-auxiliary (1) from the HVAC module-auxiliary.

INSTALLATION PROCEDURE




1. Install the evaporator block-auxiliary (1) to the HVAC module-auxiliary.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the torx studs to the evaporator block-auxiliary.

Tighten
Tighten the studs to 14 N.m (124 lb in).

3. Install the HVAC module-auxiliary.
