Home
>>
GMC Truck
>>
2002
>>
Envoy 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Liftgate
Liftgate

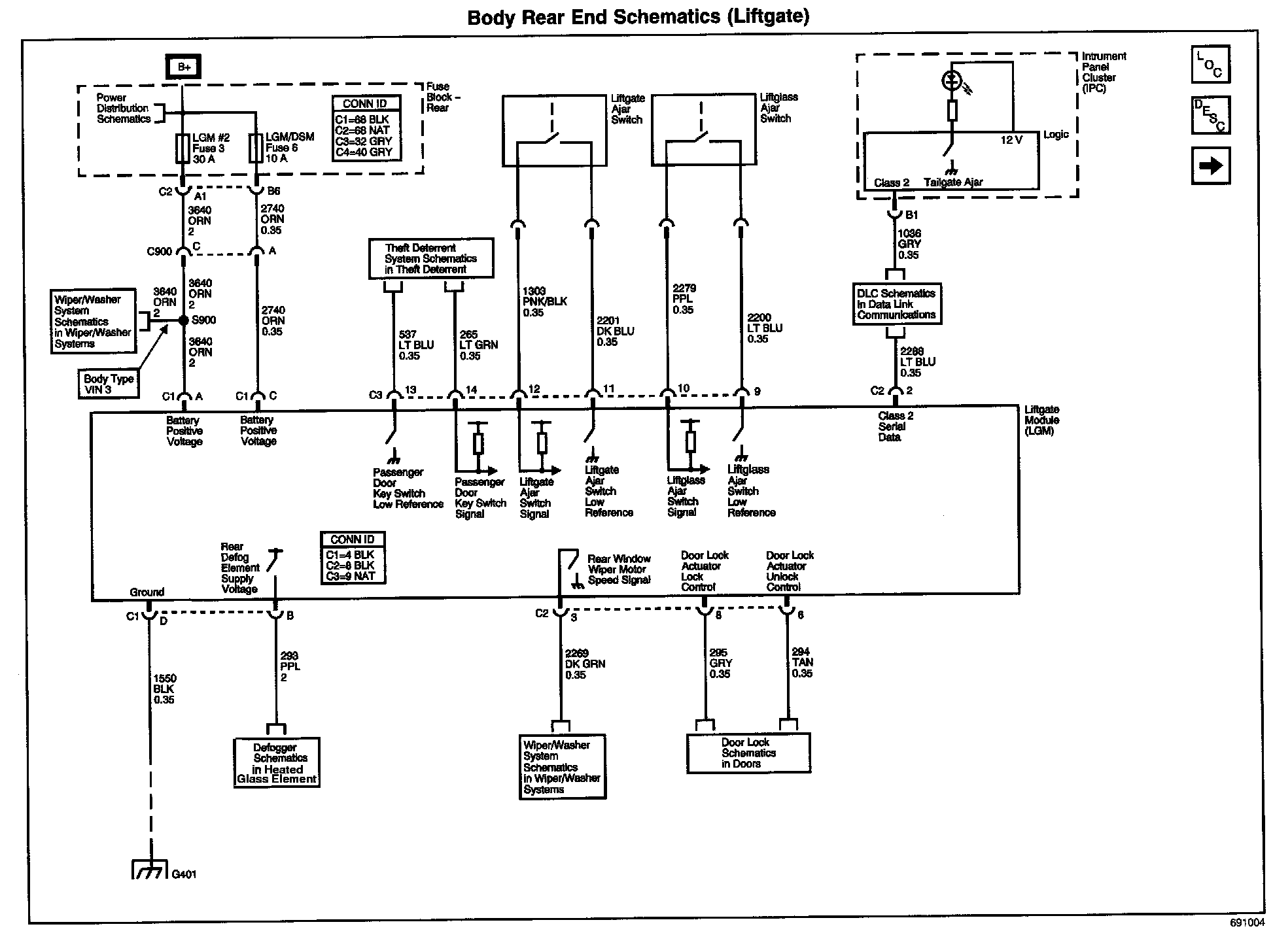

Body Rear End Schematics: Liftgate:
