GMC Truck
>>
2002
>>
Envoy 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
>>
Automatic Transmission References
Automatic Transmission References

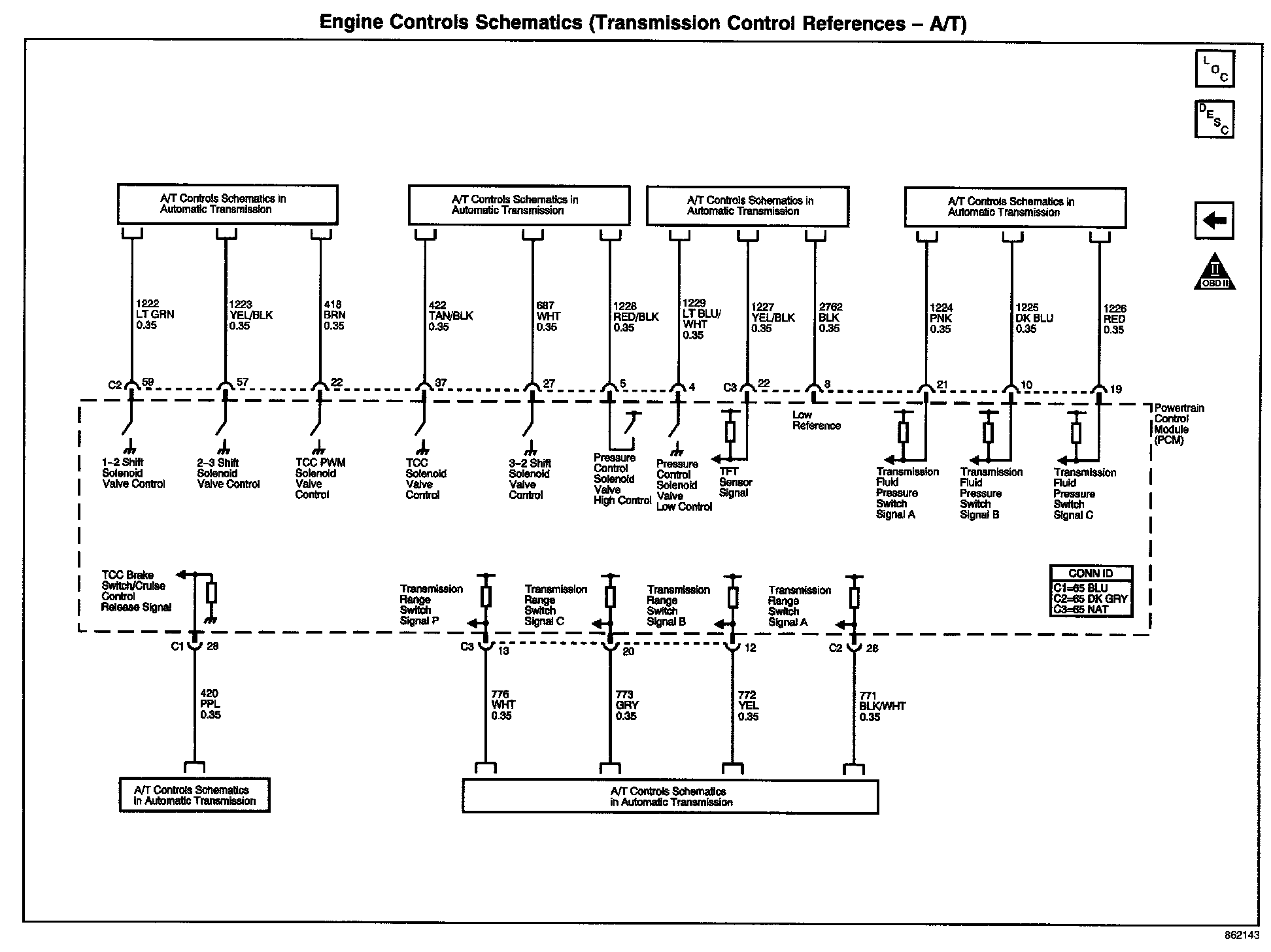

Engine Controls Schematics: Transmission Control References - A/T:
