Curiosii for ever!: Car repair manuals for everyone.
Home >> GMC Truck >> 2002 >> Envoy 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> C201-C203 >> C202

C202

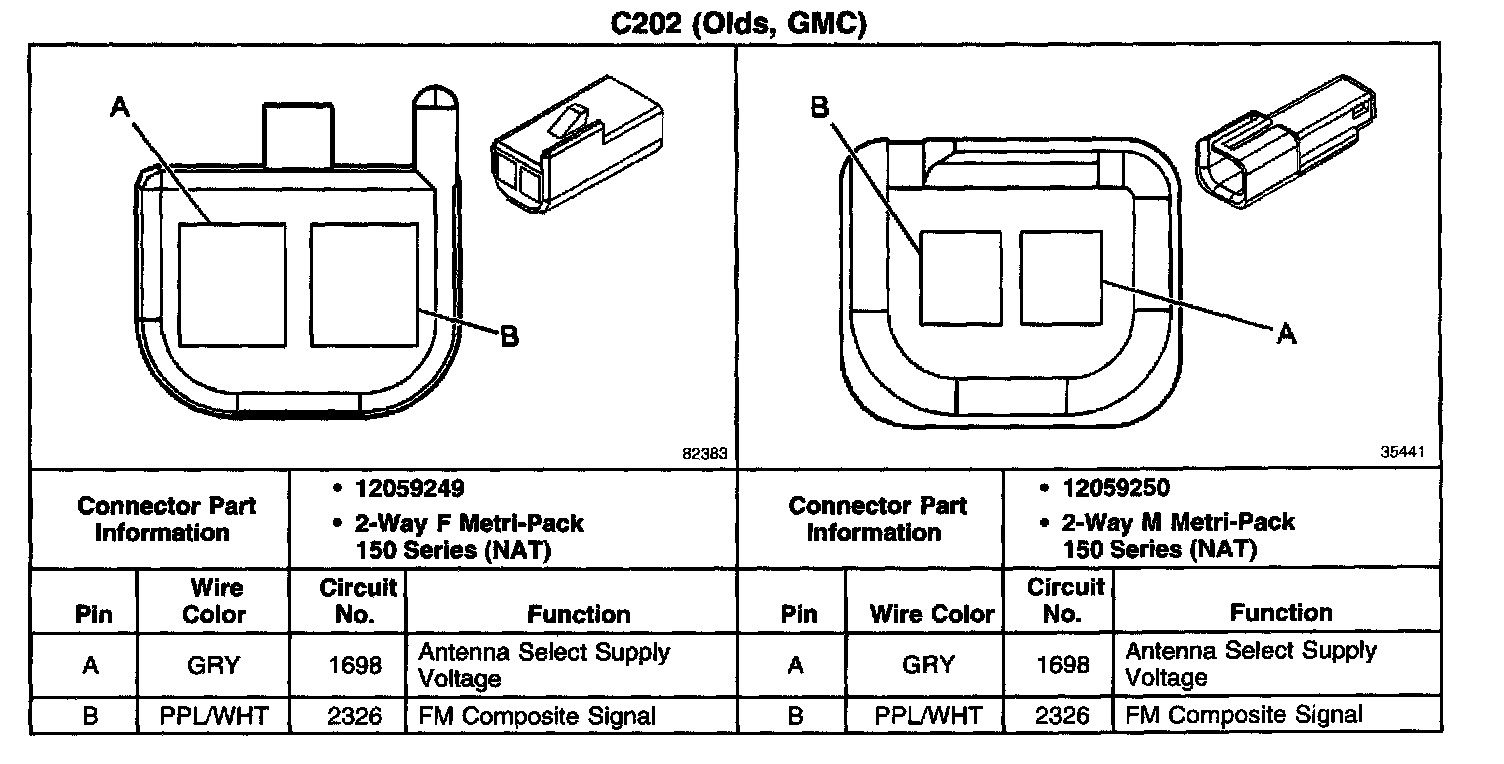

C202 (Olds, GMC):
