Wastegate Solenoid, Boost Sensor, IAT Sensor, ECT Sensor, & PTO
Wastegate Solenoid, Boost Sensor, IAT Sensor, ECT Sensor, & PTO

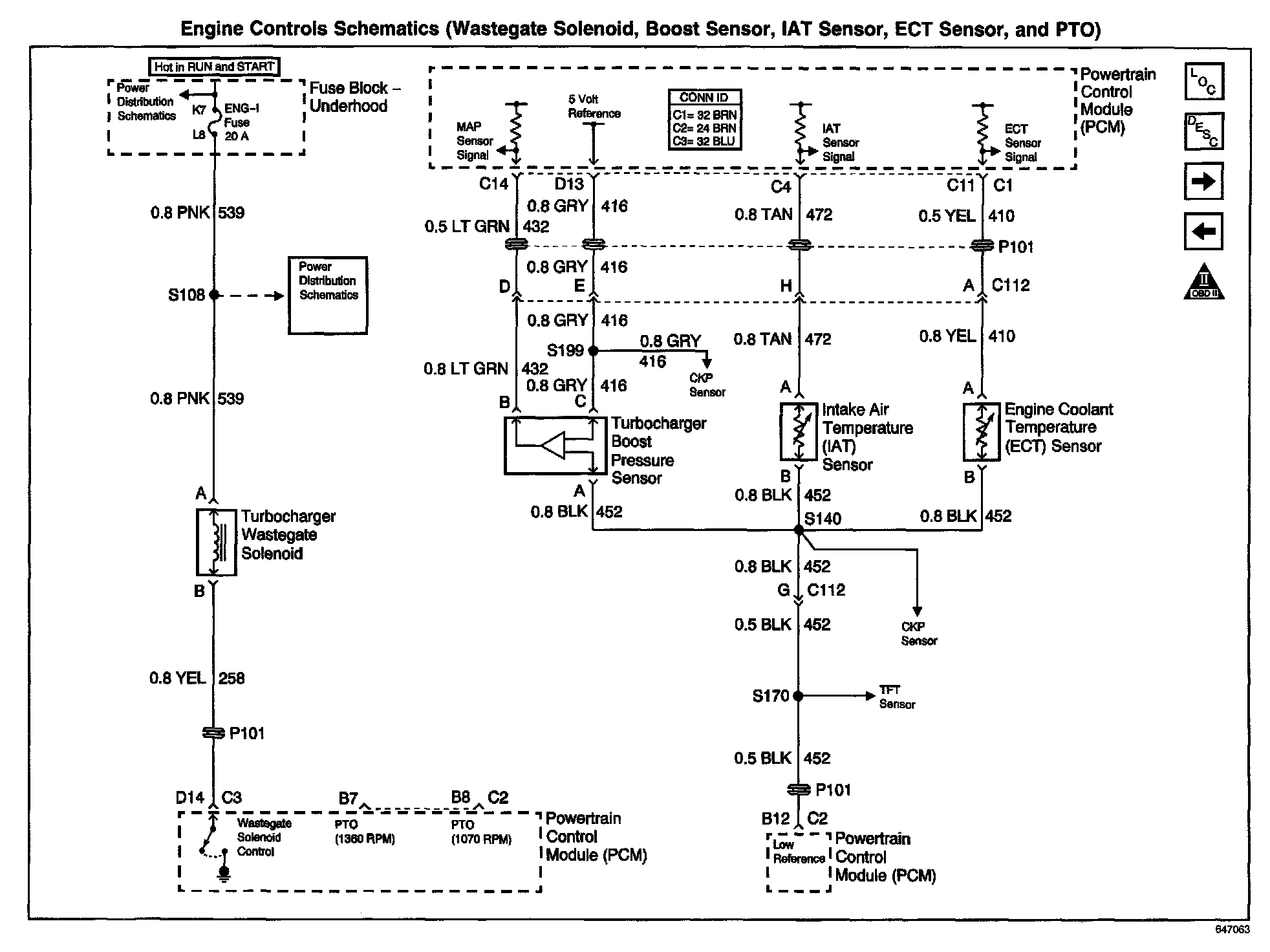

Engine Controls Schematics: Wastegate Solenoid, Boost Sensor, IAT Sensor, ECT Sensor, And PTO:
