Home >> GMC Truck >> 2000 >> Savana 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Schematics >> Theft Deterrent Learn Mode Active

Theft Deterrent Learn Mode Active

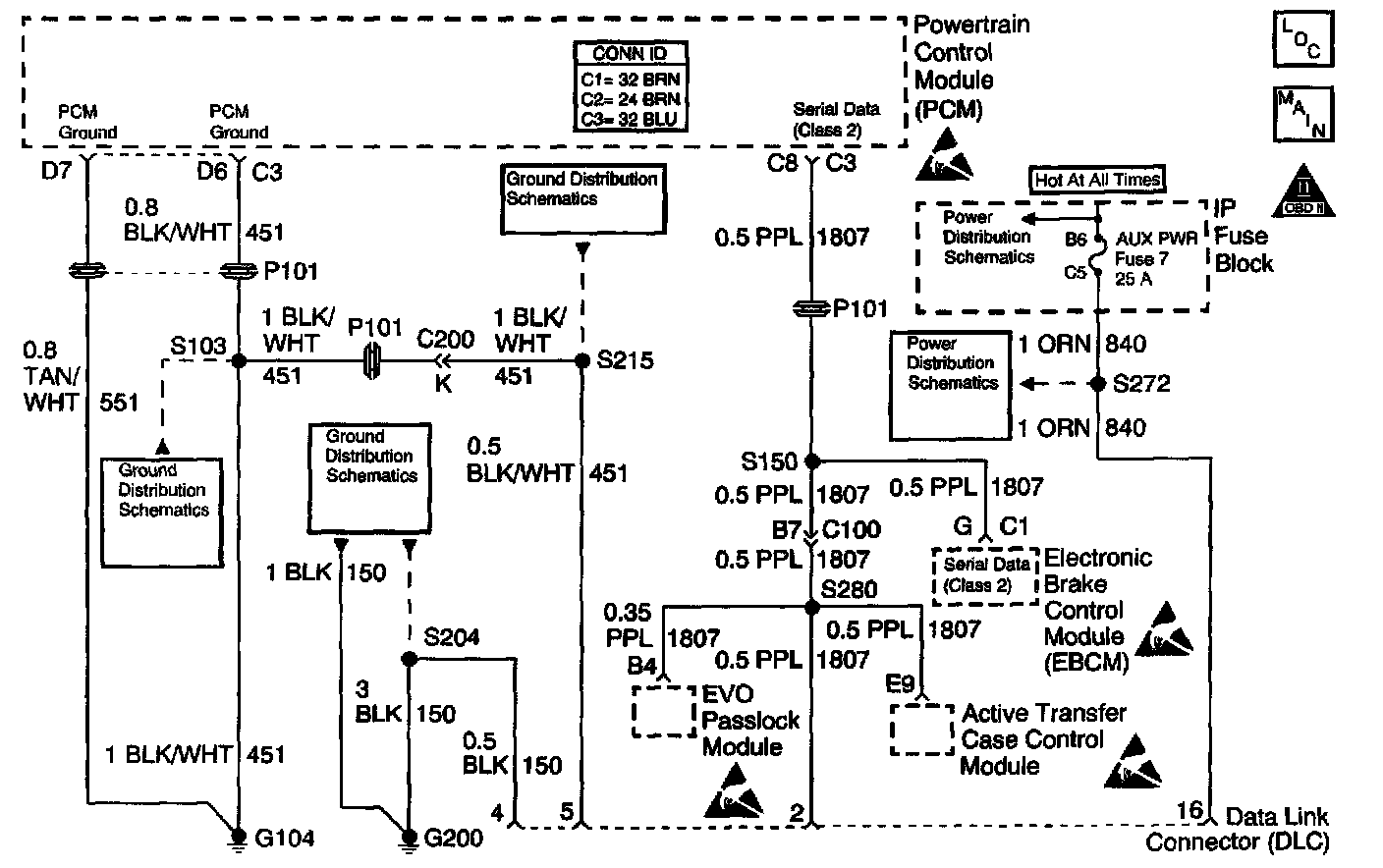

Schematic:
