Home >> GMC Truck >> 2000 >> Safari Van AWD V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve >> Diagrams

EGR Valve: Diagrams

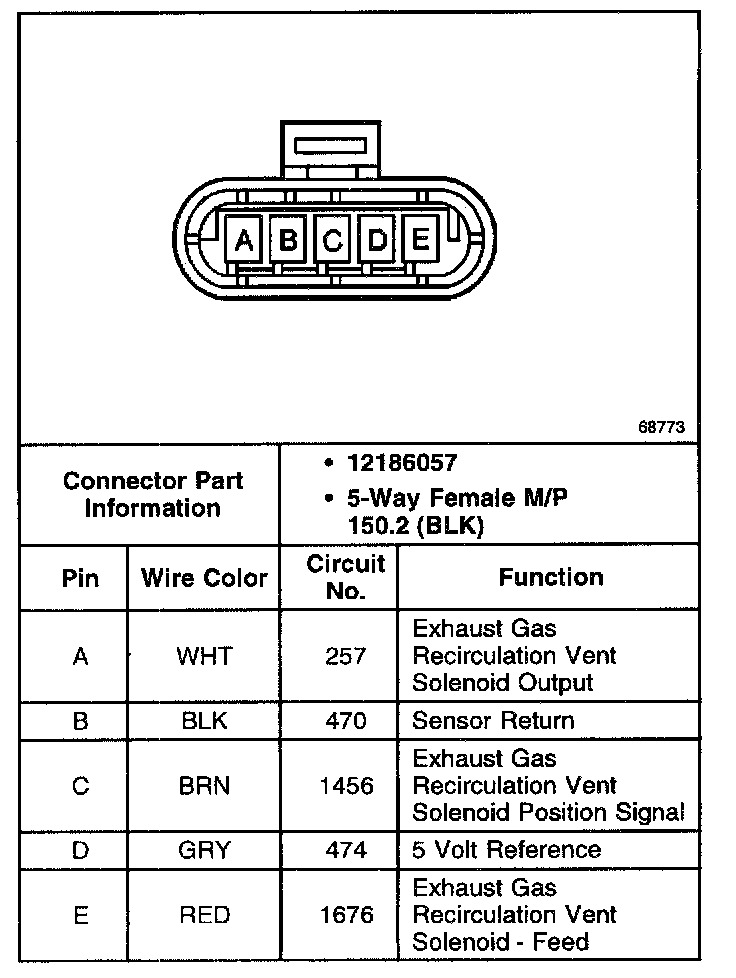

EGR Linear Solenoid Valve:
